CATHETERS

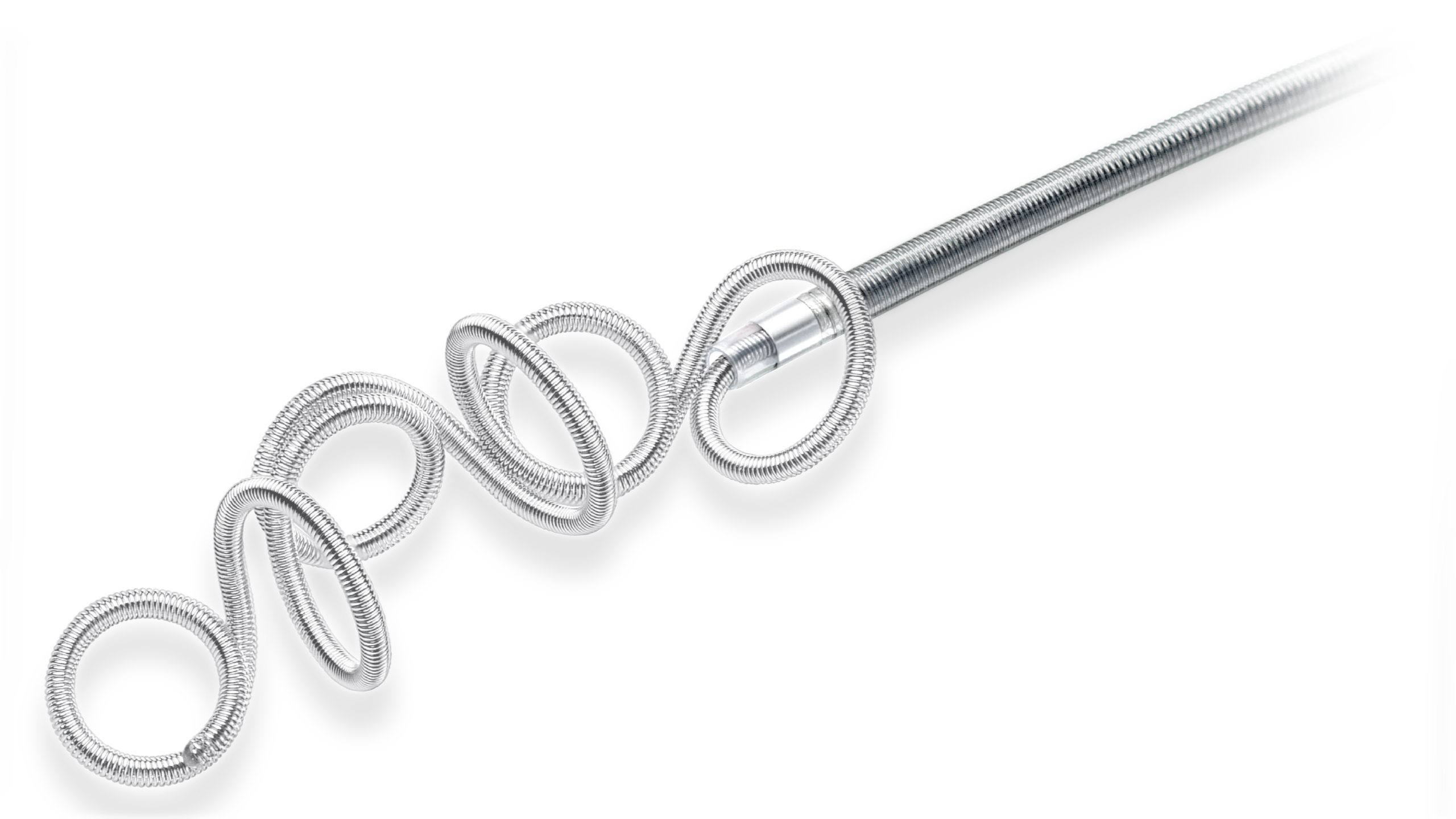

PROGREAT ALPHA™ Microcatheter



PROGREAT ALPHA 2.0 Fr designed to enhance access to small peripheral vessels1,2

Confidently Deliver Embolotherapy

  • Thin-wall design with large 0.019" lumen¹,²
  • Tungsten coil reinforcement for kink resistance³
  • DMSO compatible⁴

Improve Efficiency of Embolization Procedures

  • Supports the delivery of large embolics—up to 500μm spherical particles, and the AZUR® CX 0.018” Peripheral Coil System²

Designed for Small Vessel Embolization

  • Prostate artery embolization (PAE)
  • Pre Y-90 embolization
  • Gastrointestinal bleeds

PROGREAT ALPHA: High-Performance Peripheral Microcatheter for Complex Vascular Procedures

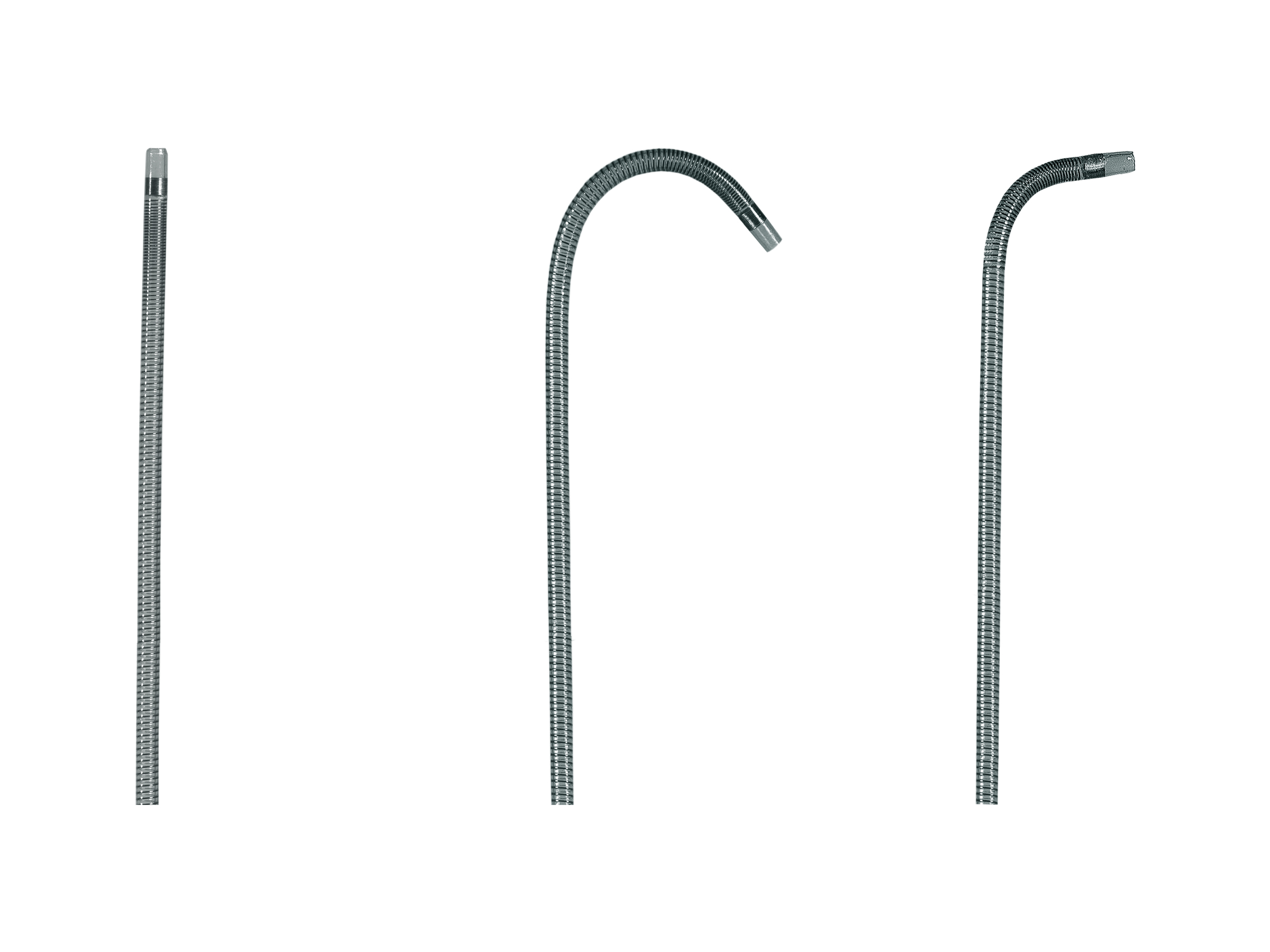

Available in Unique Tip Shapes for Branch Selectivity

STRAIGHT

J CURVE

70° ANGLE

Additional Resources

PROGREAT ALPHA Ordering Information

Fr Size Product Code Length (cm) Tip Shape Max Pressure (psi) RO Markers Hydrophilic Coating Length (cm)
2.0 MC*PC2011Y 110 Straight 750 1 50
MC*PC2013Y 130 Straight 750 1 70
MC*PC2013ZRA 130 70 Deg. Angle 750 1 70
MC*PC2013ZRC 130 J Curve 750 1 70
MC*PC2015Y 150 Straight 750 1 90
MC*PC2015ZRA 150 70 Deg. Angle 750 1 90
MC*PC2015ZRC 150 J Curve 750 1 90

PROGREAT ALPHA Specifications

Catheter OD
Distal/Proximal
(Fr/mm)		 LENGTH
(cm)		 INNER
DIAMETER
(in/mm)		 MAX GUIDEWIRE
(in)		 EMBOLIC
COMPATIBILITY		 DEAD SPACE
VOLUME
(mL)		 ACTUAL FLOW RATE*
(mL/sec)
750 psi
2.0/2.7 Fr
(0.67/0.90mm)		 110 0.019/0.49 0.016 AZUR® CX 0.018”
Coils/HydroPearl®
400±75 μm		 0.28 0.9
2.0/2.7 Fr
(0.67/0.90mm)		 130 0.019/0.49 0.016 AZUR® CX 0.018”
Coils/HydroPearl®
400±75 μm		 0.32 0.8
2.0/2.7 Fr
(0.67/0.90mm)		 150 0.019/0.49 0.016 AZUR® CX 0.018”
Coils/HydroPearl®
400±75 μm		 0.38 0.6

Related Products

References

RX ONLY. Refer to the product labels and package insert for complete warnings, precautions, potential complications, and instructions for use.

  1. Progreat Microcatheters IFU PG34E002-05. Rev. 10 2023-11
  2. Data on File. Terumo Medical Corporation.
  3. PROGREAT Catheter 510(k); 2003.
  4. PROGREAT DMSO Compatibility Statement Letter.
