CATHETERS

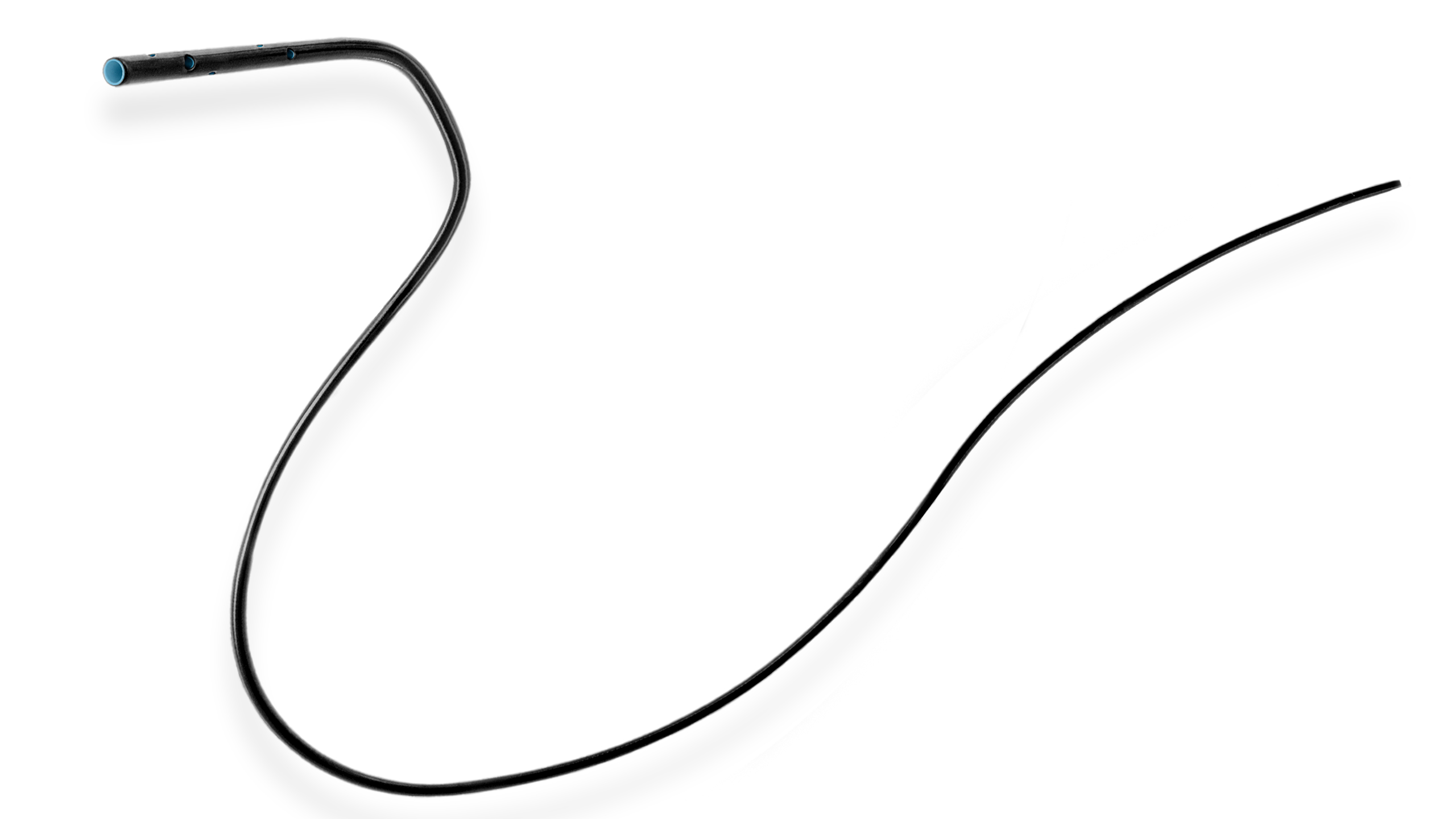

GLIDECATH^® Hydrophilic Coated Catheter

Hydrophilically coated, angiographic catheter providing the vessel selectivity and navigation required for a wide variety of diagnostic or interventional procedures.

Vessel Selectivity

Offered in 17 unique tip shapes

Excellent Trackability

Navigate difficult vessel anatomy with smooth tracking facilitated by TERUMO Glide Technology™

Superior Kink Resistance

Achieve ideal flow rates for diagnostic imaging^1,a

Angiographic Catheter for Diagnostic or Interventional Procedures

Navigate difficult vessel anatomy with smooth tracking facilitated by TERUMO Glide Technology™
Leverage superior kink resistance to achieve ideal flow rates for diagnostic imaging^1,*

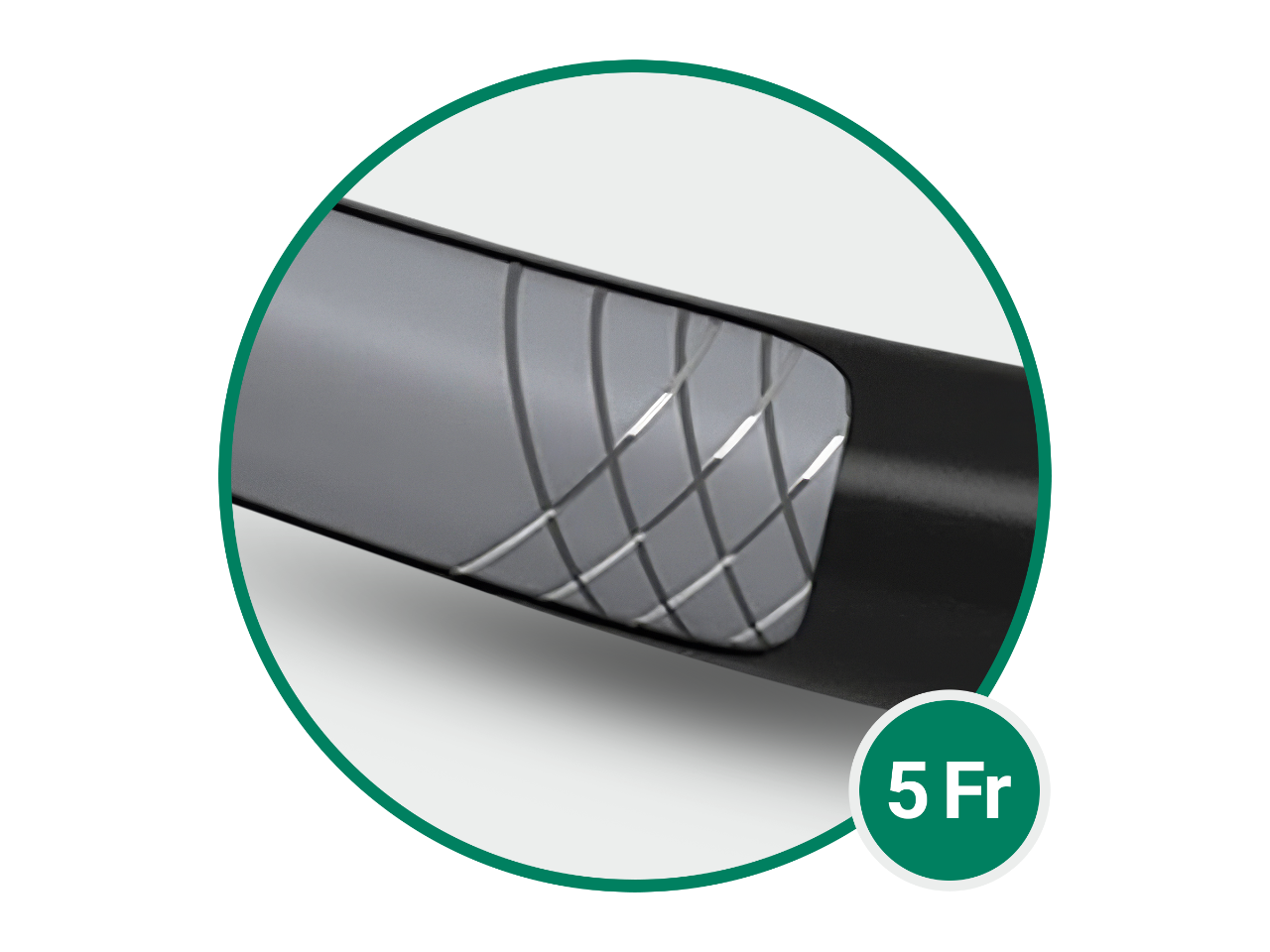

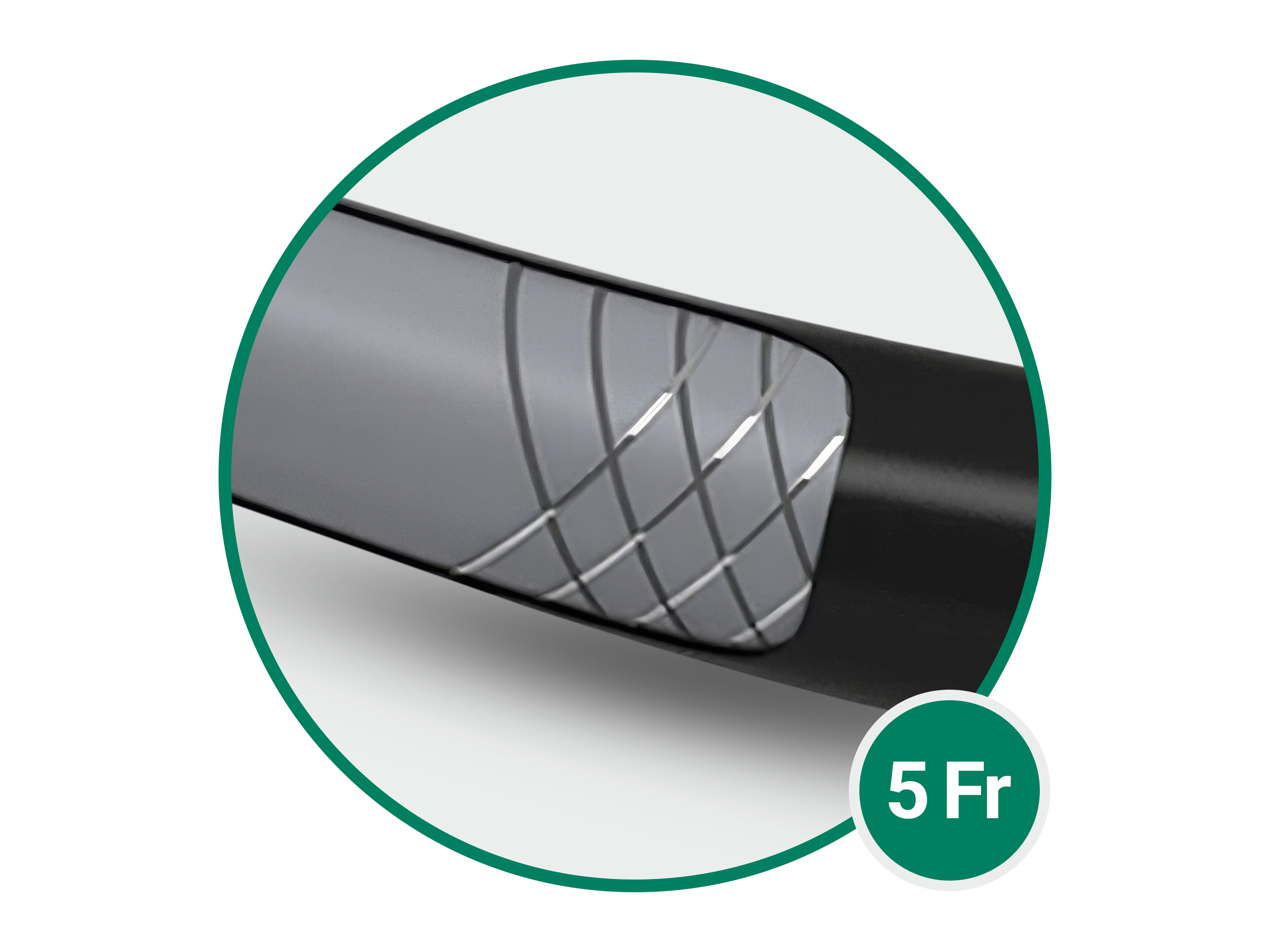

Single-Braided

Reach distal visceral vessels with best-in-class trackability^1,*
Approach tortuous anatomy with best-in-class pushability^1,*

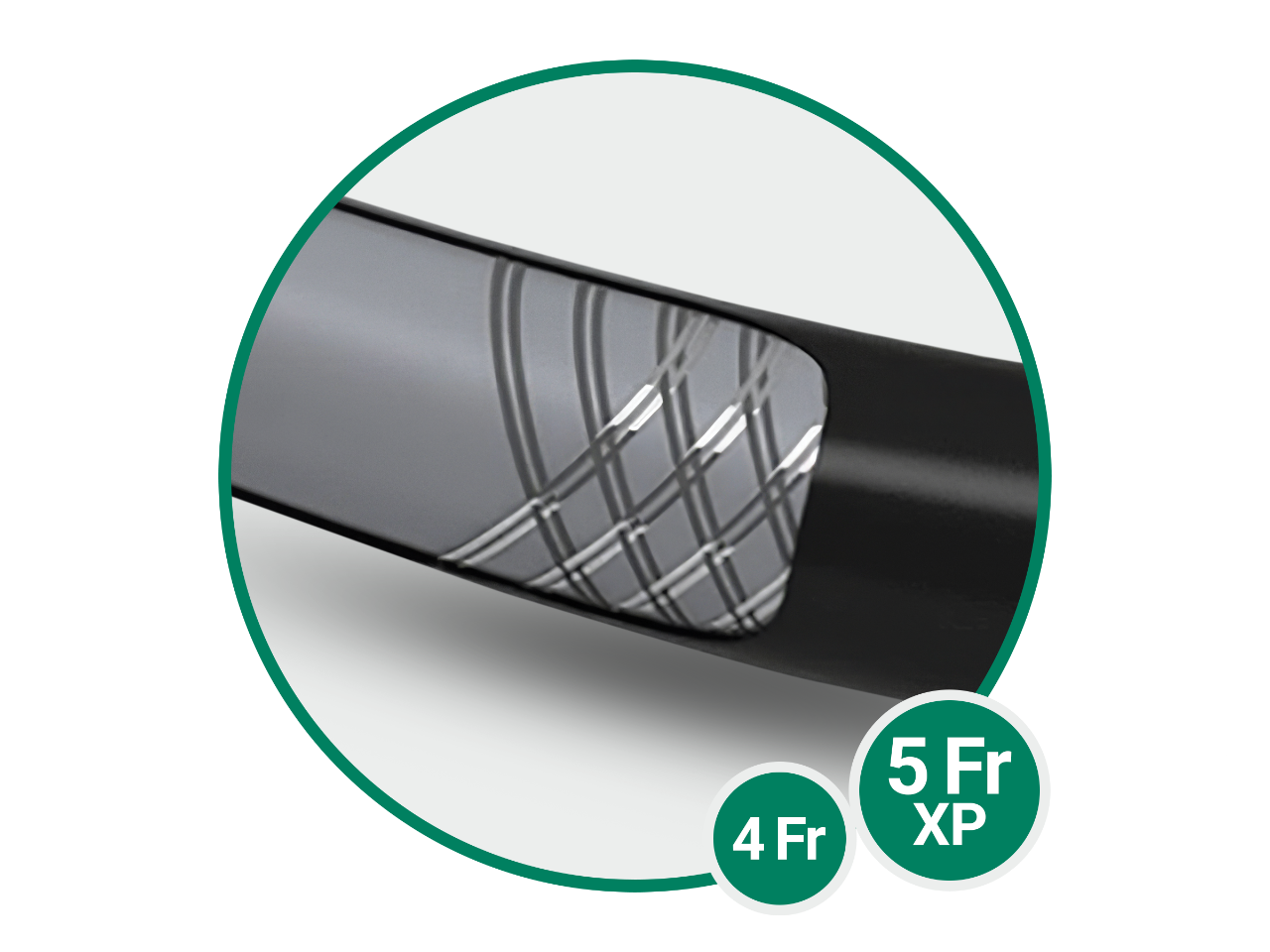

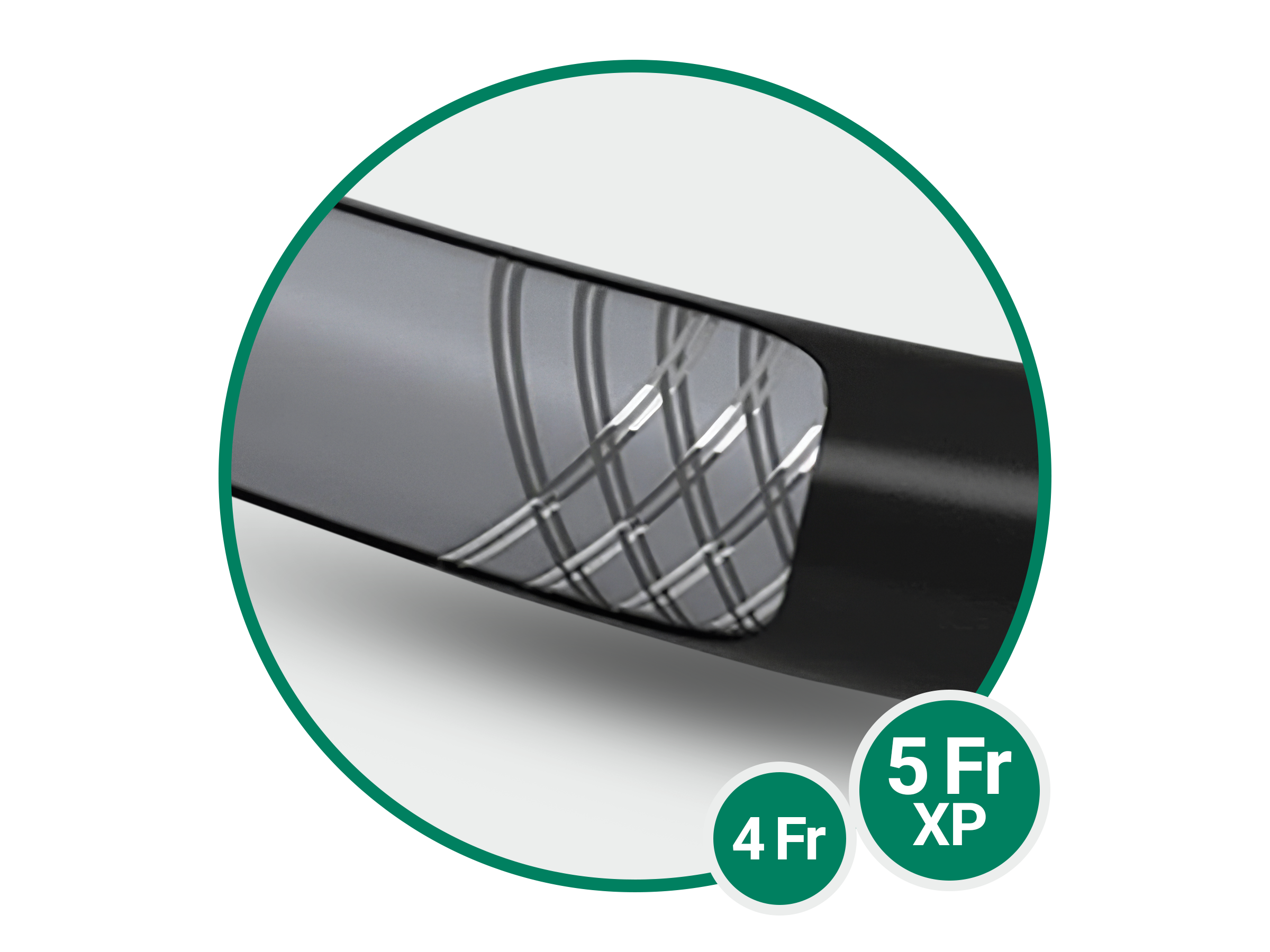

Double-Braided

Access and cross challenging lesions with excellent pushability and torquability¹
Achieve superior device delivery through a nylon-rich inner layer^1,*
Leverage superior kink resistance to maintain lumen integrity throughout the procedure^1,*

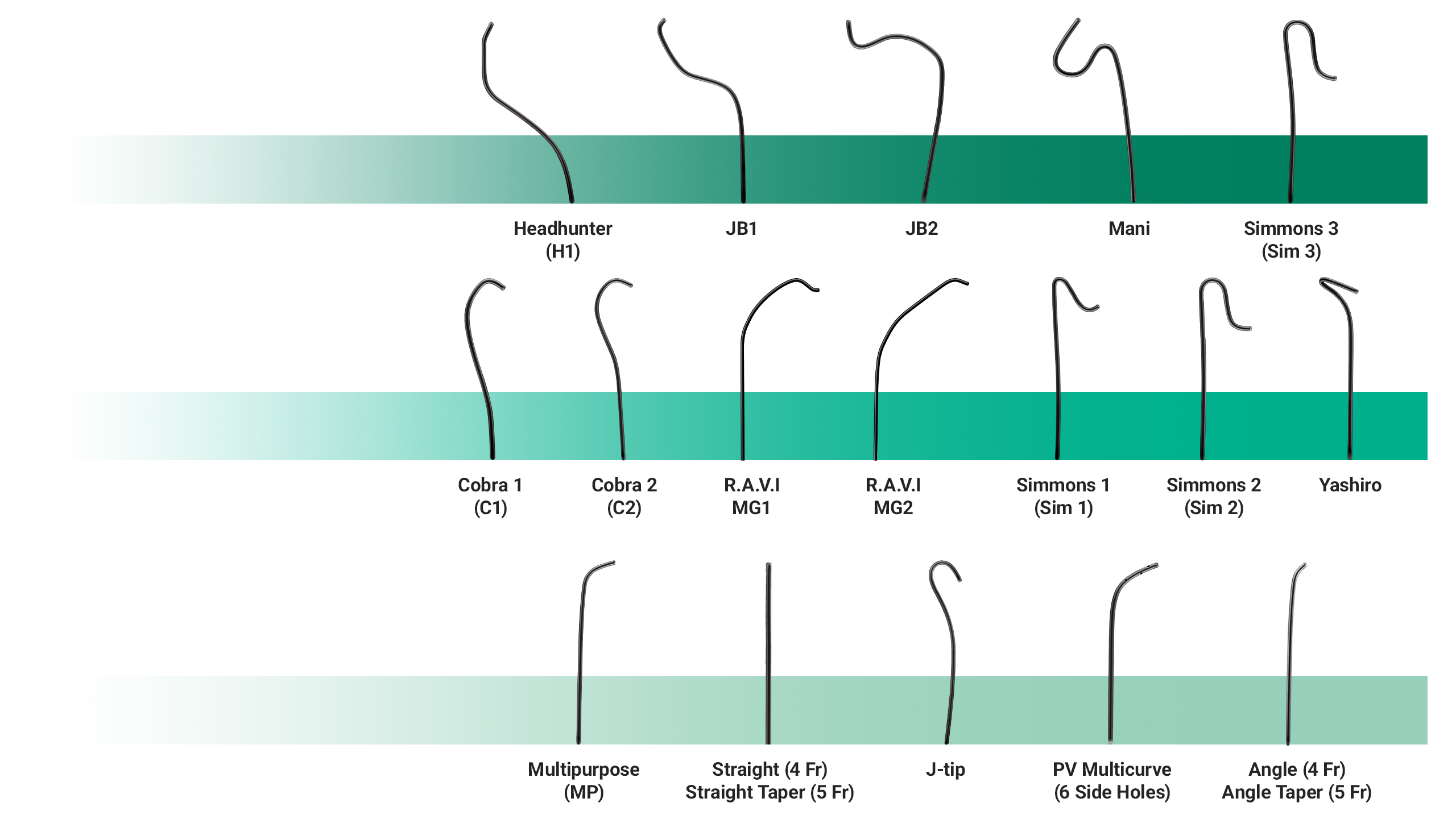

Tip Shape Portfolio

GLIDECATH^® is offered in 17 unique tip shapes that are designed for various anatomy.

Additional Resources

GLIDECATH Catheter 4Fr Product Codes

TIP SHAPES	Catheter Length
	4 Fr	65 cm	70 cm	100 cm	120 cm	125 cm	135 cm	150 cm
	Straight	CG412	-	CG413	CG414	-	-	CG431
	Angle	CG415	-	CG416	CG417	-	-	CG432
	C1	CG408	-	-	-	-	-	-
	C2	CG409	-	CG410	-	-	-	CG434
	J-Tip	CG411	-	-	-	-	-	-
	Yashiro*	-	CG422	-	-	-	-	-
	Sim 1	-	-	CG401	-	-	-	-
	Sim 2	-	-	CG402	-	-	-	-
	Sim 3	-	-	CG403	-	-	-	-
	H1	-	-	CG404	-	-	-	-
	JB1	-	-	CG405	-	-	-	-
	JB2	-	-	CG406	-	-	-	-
	RAVI MG1	-	-	-	-	CG440	-	-
	RAVI MG2	-	-	-	-	-	CG441	CG442
	MP	-	-	CG418	-	-	-	-
	Mani	-	-	CG407	-	-	-	-
	Pigtail	-	-	-	-	-	-	CG433
	PV Multicurve	-	-	-	-	-	-	CG430

GLIDECATH Catheter 5Fr Product Codes

TIP SHAPES	Catheter Length
	5 Fr	65 cm	70 cm	100 cm	120 cm	125 cm	135 cm	150 cm
	Straight	CG505	-	CG506	-	-	-	-
	Angle Taper	CG507	-	CG508	-	-	-	-
	C1	CG501	-		-	-	-	-
	C2	CG502	-	CG503	-	-	-	-
	J-Tip	CG504	-	-	-	-	-	-
	Yashiro*	-	CG519	-	-	-	-	-
	Sim 1	-	-	CG510	-	-	-	-
	Sim 2	CG521	-	CG511	-	-	-	-
	Sim 3	-	-	CG512	-	-	-	-
	H1	-	-	CG513	-	-	-	-
	JB1	-	-	CG514	-	-	-	-
	JB2	-	-	CG515	-	-	-	-
	MP	-	-	CG509	-	-	-	-
	Mani	-	-	CG516	-	-	-	-

GLIDECATH Catheter 5Fr XP Product Codes

TIP SHAPES	Catheter Length
	5 Fr XP	65 cm	70 cm	100 cm	120 cm	125 cm	135 cm	150 cm
	Straight	RF*ZM7510GM	-	RF*ZM75110M	-	-	-	RF*ZM75115JM
	Angle	RF*ZV9510GM	-	RF*ZV95110M	-	-	-	-
	C2	RF*ZB5510GM	-		-	-	-	-
	Sim 1	-	-	RF*WA15110M	-	-	-	-
	Sim 2	-	-	RF*WA25110M	-	-	-	-
	H1	-	-	RF*WB15110M	-	-	-	-
	RAVI MG1	-	-	-	-	RF*ZRV511CM	-	-
	RAVI MG2	-	-	-	-	-	RF*ZUF511DJM	RF*ZUF5115JM

	4 Fr	5 Fr	5 Fr XP
Effective Lengths	65 cm, 70 cm, 100 cm, 120 cm, 135 cm & 150 cm	65cm, 70cm & 100cm	65 cm, 100 cm, 125 cm, 135 cm & 150 cm
Construction	Double-Braided Stainless Steel	Single-Braided Stainless Steel	Double-Braided Stainless Steel
Inner Diameter - Distal Tip	0.0405” / 1.03 mm	0.0433” / 1.10 mm	0.0472” / 1.20 mm
Inner Diameter - Proximal Shaft	0.0413” / 1.05 mm	0.0441” / 1.12 mm	0.0480” / 1.22 mm
Guidewire Compatibility	0.038"	0.038"	0.038"
Maximum Injection Pressure	750 psi	1000 psi	1000 psi
Shape	Straight Angle Cobra 1 (C1) Cobra 2 (C2) J-Tip Yashiro Simmons 1 (SIM1) Simmons 2 (SIM2) Simmons 3 (SIM3) Headhunter Berenstein 1 (BERN 1) Berenstein 2 (BERN 2) Multi-Purpose Mani PV Multicurve R.A.V.I. MG1 R.A.V.I. MG2	Straight Angle Cobra 1 (C1) Cobra 2 (C2) J-Tip Yashiro Simmons 1 (SIM1) Simmons 2 (SIM2) Simmons 3 (SIM3) Headhunter Berenstein 1 (BERN1) Berenstein 2 (BERN2) Multi-Purpose Mani	Straight Angle Cobra 2 (C2) Simmons 1 (SIM1) Simmons 2 (SIM2) Headhunter R.A.V.I. MG1 R.A.V.I. MG2
Hydrophilic Coating	Distal 15 cm & Distal 40 cm	Distal 25 cm & Distal 40 cm	Distal 15 cm & Distal 40 cm
