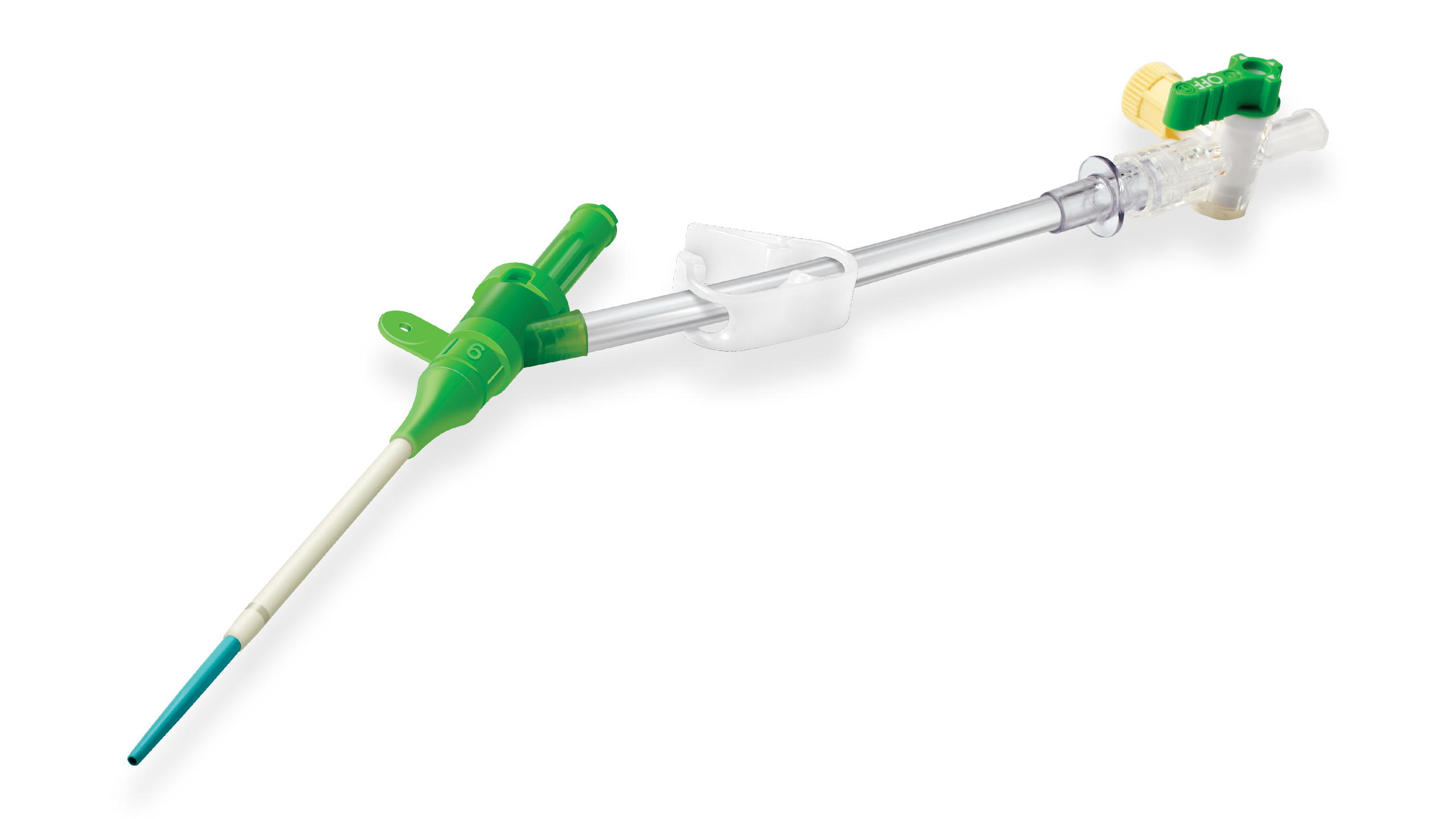

PINNACLE® R/O II HiFlo Introducer Sheath
Higher flow rates with 45° side tube take-off provides smooth flow dynamic within the sheath.¹
Use With Confidence
- Snap-on dilator lock helps prevent backout during insertion
Reduce Complications
- Kink-resistant design and material helps keep lumen open throughout the procedure
Easy Access
- 4cm sheath length designed for easier management at superficial access site
Optimized for High-Flow, Superficial Vascular Access With Enhanced Pushability
The Palladium marker band is 5mm from the tip.¹
- Larger inner diameter side tube to accommodate higher flow rate¹
- Side tube pinch clamp to temporarily stop flow during procedure¹
Shorter 4 cm sheath and stiff dilator enhances pushability for easier and more efficient superficial access procedures¹
Additional Resources
| Item Code | Sheath Size (Fr) | Sheath Length (cm) | Max Guidewire Compatible | Short Guidewire |
| RSB604H | 6 | 4 | 0.038" | Spring 0.035''/40cm |
| RSB704H | 7 | 4 | 0.038" | Spring 0.035''/40cm |
| RSB804H | 8 | 4 | 0.038" | Spring 0.035''/40cm |
| RSB605H | 6 | 4 | 0.038" | No Wire |
| RSB705H | 7 | 4 | 0.038" | No Wire |
| RSB805H | 8 | 4 | 0.038" | No Wire |
Related Products
References
RX ONLY. Refer to the product labels and package insert for complete warnings, precautions, potential complications, and instructions for use.
1. Data on File
