BALLOONS

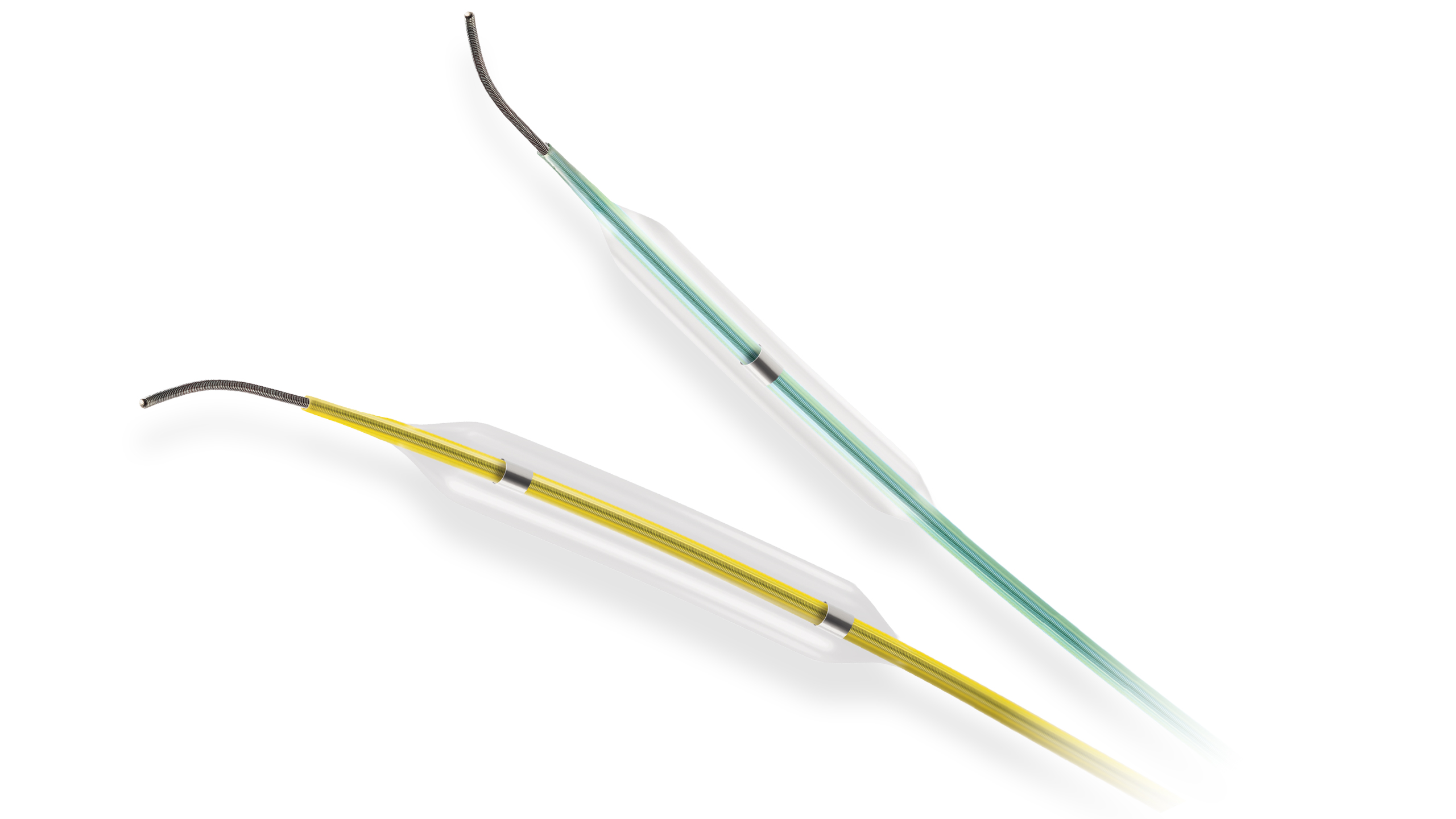

TAKERU® PTCA Balloon Dilatation Catheter
Choose between:
- RX Semi-compliant
- RX Non-compliant
- Over the Wire options
Superior Flexibility
- Super tracking through tortuous anatomy1

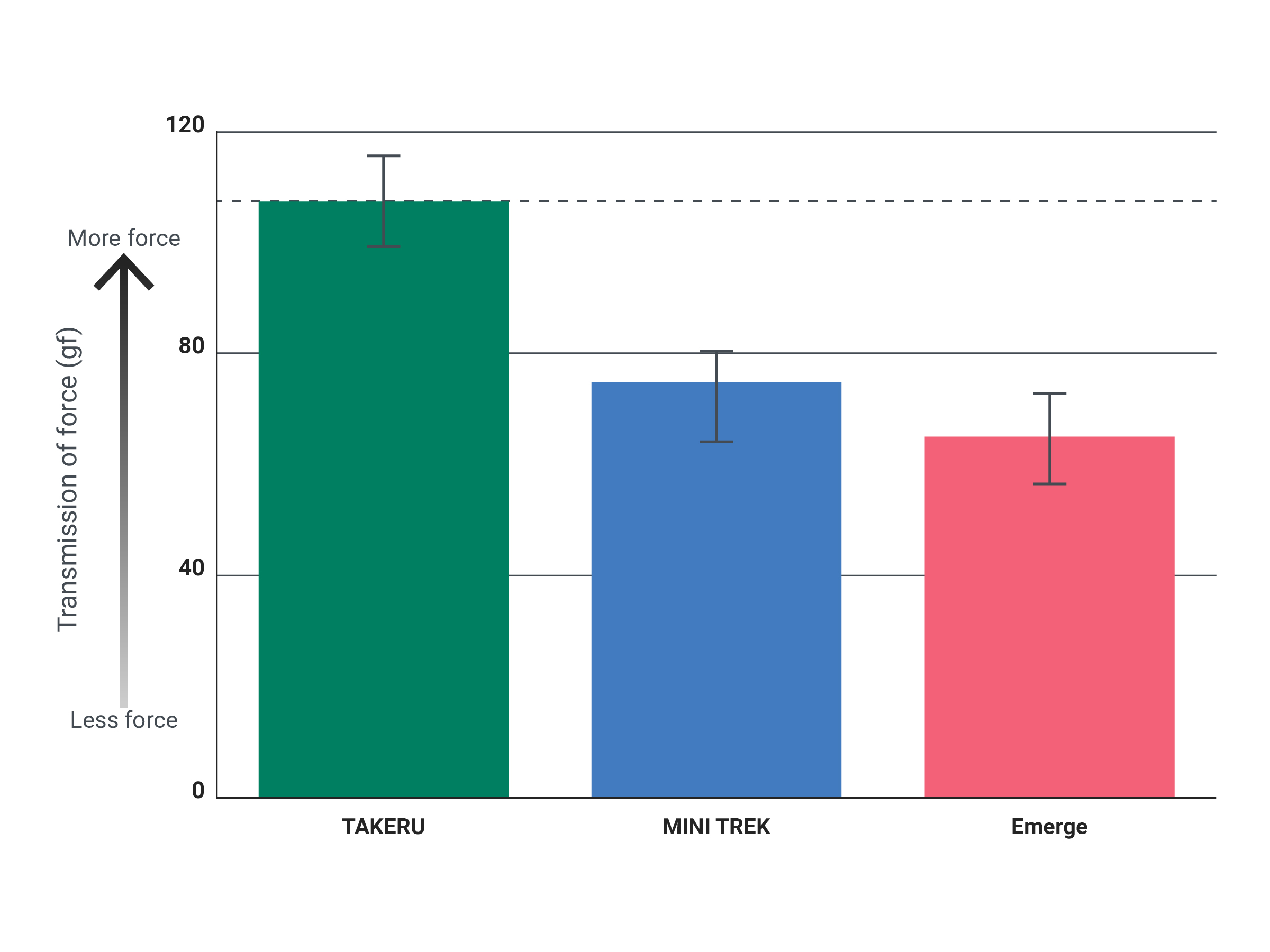

Superior Pushability
- Unsurpassed pushability vs. leading PTCA balloon catheters1
Lower Profile for Crossability
- Engineered for optimized performance in reaching and crossing complex lesions2-4
RX TAKERU PTCA DILATATION CATHETER
- 1.5mm balloon with a lower entry profile than the leading 1.2mm balloon to help cross complex lesions1,2
- Greater tip flexibility allows Takeru to go further through tortuous anatomy1
- Tightest re-wrap to support re-crossability within the same procedure1
RX NC TAKERU
High pressure balloon ideal for post dilatation after stent placement

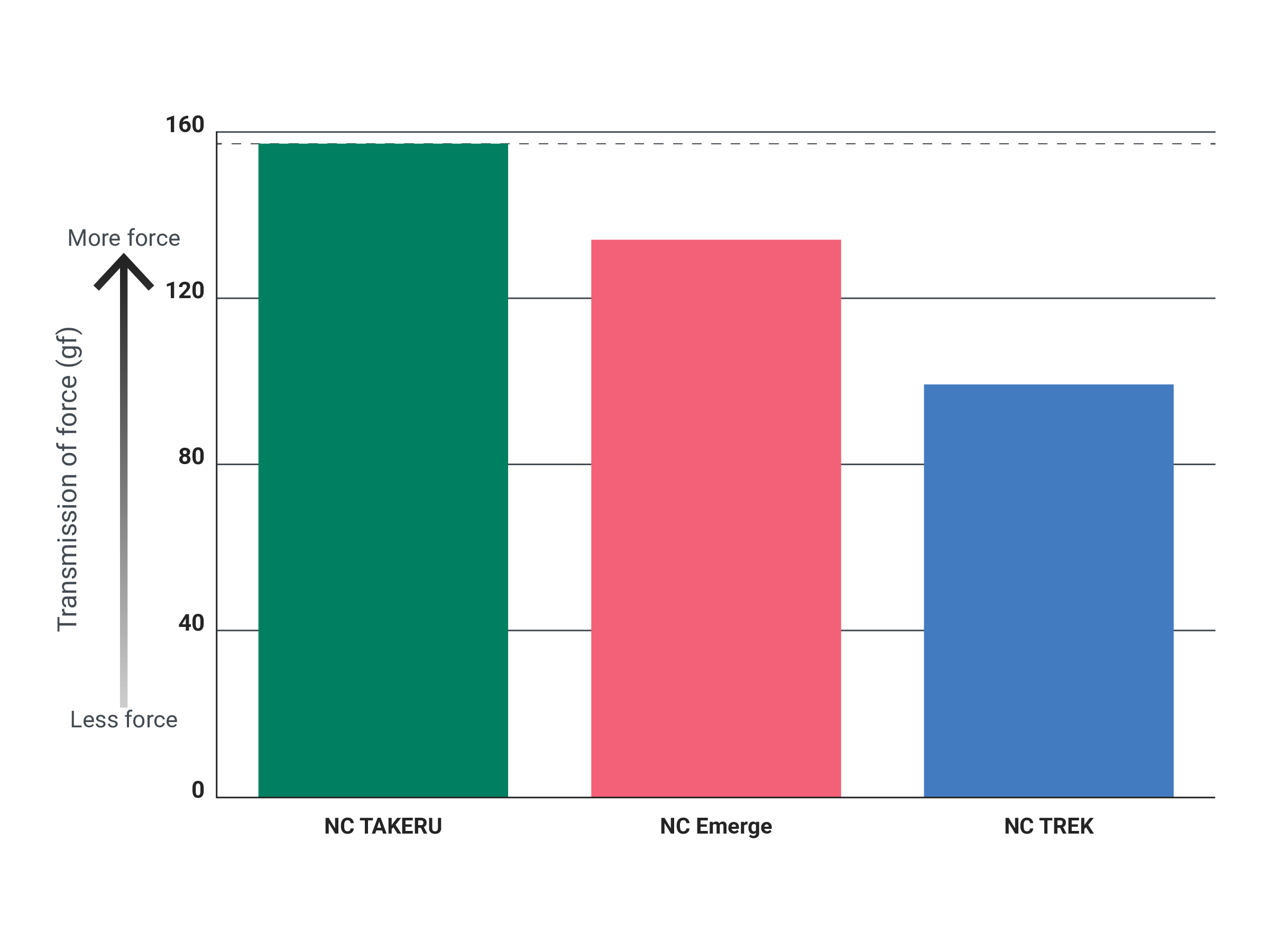

- Superior pushability to help cross tortuous anatomy1
- Tightest re-wrap compared to leading competitors1
Product Animation
Additional Resources
NC Takeru Codes
| BALLOON DIAMETER (MM) |
BALLOON LENGTH (MM) | |||
| 8 | 12 | 15 | 21 | |
| 2.00 | DC-RZ2008UA2 | DC-RZ2012UA2 | DC-RZ2015UA2 | DC-RZ2021UA2 |
| 2.25 | DC-RZ2208UA2 | DC-RZ2212UA2 | DC-RZ2215UA2 | DC-RZ2221UA2 |
| 2.50 | DC-RZ2508UA2 | DC-RZ2512UA2 | DC-RZ2515UA2 | DC-RZ2521UA2 |
| 2.75 | DC-RZ2708UA2 | DC-RZ2712UA2 | DC-RZ2715UA2 | DC-RZ2721UA2 |
| 3.00 | DC-RZ3008UA2 | DC-RZ3012UA2 | DC-RZ3015UA2 | DC-RZ3021UA2 |
| 3.25 | DC-RZ3208UA2 | DC-RZ3212UA2 | DC-RZ3215UA2 | DC-RZ3221UA2 |
| 3.50 | DC-RZ3508UA2 | DC-RZ3512UA2 | DC-RZ3515UA2 | DC-RZ3521UA2 |
| 4.00 | DC-RZ4008UA2 | DC-RZ4012UA2 | DC-RZ4015UA2 | DC-RZ4021UA2 |
Over the Wire Takeru Codes
| Balloon Diameter (mm) | Balloon Length (mm) | ||||
| 6 |
8 | 12 | 15 | 20 | |
| 1.50 | DC-PY1506UA1 | DC-PY1512UA1 | DC-PY1515UA1 | DC-PY1520UA1 | |
| 2.00 | DC-PY2008UA2 | DC-PY2012UA2 | DC-PY2015UA2 | DC-PY2020UA2 | |
| 2.25 | DC-PY2212UA2 | DC-PY2215UA2 | DC-PY2220UA2 | ||
| 2.50 | DC-PY2508UA2 | DC-PY2512UA2 | DC-PY2515UA2 | DC-PY2520UA2 | |
| 3.00 | DC-PY3008UA2 | DC-PY3012UA2 | DC-PY3015UA2 | DC-PY3020UA2 | |
| 3.50 | DC-PY3508UA2 | DC-PY3512UA2 | DC-PY3515UA2 | DC-PY3520UA2 | |
| 4.00 | DC-PY4008UA2 | DC-PY4012UA2 | DC-PY4015UA2 | DC-PY4020UA2 | |
RX Takeru Codes
| BALLOON DIAMETER (MM) | BALLOON LENGTH (MM) | ||||
| 6 | 8 | 12 | 15 | 20 | |
| 1.50 | DC-RY1506UA1 | DC-RY1512UA1 | DC-RY1515UA1 | DC-RY1520UA1 | |
| 2.00 | DC-RY2008UA2 | DC-RY2012UA2 | DC-RY2015UA2 | DC-RY2020UA2 | |
| 2.25 | DC-RY2212UA2 | DC-RY2215UA2 | DC-RY2220UA2 | ||
| 2.50 | DC-RY2508UA2 | DC-RY2512UA2 | DC-RY2515UA2 | DC-RY2520UA2 | |
| 3.00 | DC-RY3008UA2 | DC-RY3012UA2 | DC-RY3015UA2 | DC-RY3020UA2 | |
| 3.50 | DC-RY3508UA2 | DC-RY3512UA2 | DC-RY3515UA2 | DC-RY3520UA2 | |
| 4.00 | DC-RY4008UA2 | DC-RY4012UA2 | DC-RY4015UA2 | DC-RY4020UA2 | |
Related Products
References
RX ONLY. Refer to the product labels and package insert for complete warnings, precautions, potential complications, and instructions for use.
- Data on file.
- RX NC Takeru, 2022.
- RX Takeru IFU, 2022.
- OTW Takeru IFU, 2020.
