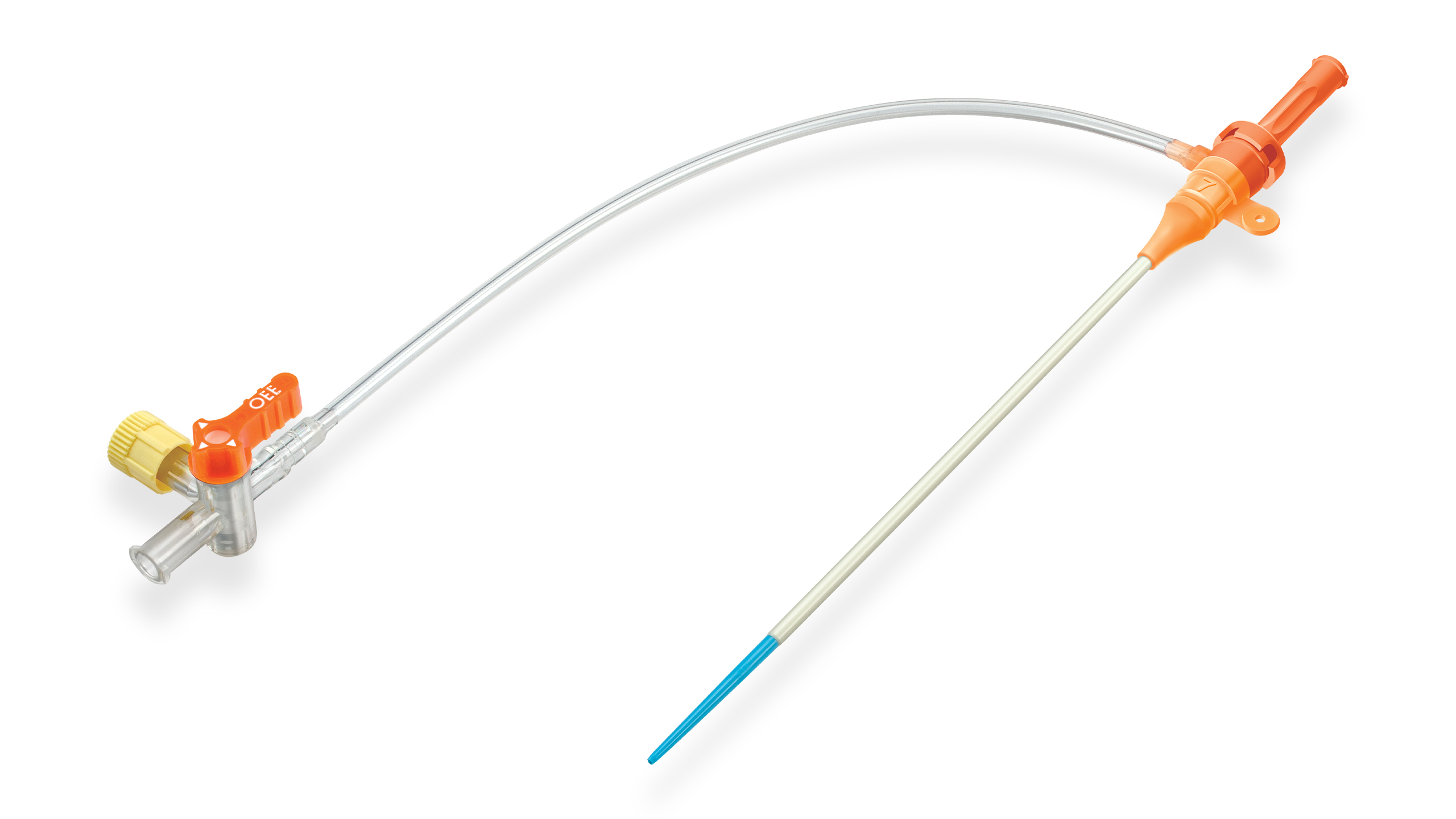

PINNACLE® TIF TIP™ Introducer Sheath
Total Integrated Fit (TIF) technology requires less force than comparable sheaths1
Use With Confidence
- Seamless guidewire-to-dilator and dilator-to-sheath transition are designed to reduce risk of gaps and arterial damage
Reduce Complications
- Performs well in simulated difficult access sites and tissue.
Easy Access
- Optimal tapering design at the tip of the sheath and dilator for smooth penetration
Arterial Sheath With Tip Penetration Force
TIF technology provides smooth transitions from total integrated tip designed to reduce the risk of gaps and arterial damage that can lead to major complications during access procedures.1
Additional Resources
| Product Code | Length (cm) | French Size | Dilator Protruding Length (cm) | Mini Guidewire Diameter (in) |
| 10-2031 | 10 | 5 | 2.5 | 0.035 |
| 10-2032 | 10 | 6 | 2.5 | 0.035 |
| 10-2033 | 10 | 7 | 2.5 | 0.035 |
| 10-2034 | 10 | 8 | 2.5 | 0.035 |
| 10-2531 | 10 | 5 | 2.5 | 0.038 |
| 10-2532 | 10 | 6 | 2.5 | 0.038 |
| 10-2533 | 10 | 7 | 2.5 | 0.038 |
| 10-2534 | 10 | 8 | 2.5 | 0.038 |
What is an introducer sheath used for?
An introducer sheath is a medical device used during procedures that require access to blood vessels, such as catheterization or the placement of stents and pacemakers. It acts as a protective conduit, allowing instruments to be inserted into the vessel while minimizing trauma to the vessel wall. The sheath typically includes a dilator to ease insertion and a valve to prevent blood loss. Its use helps maintain a sterile field, improves procedural efficiency, and reduces complications like bleeding or vessel damage.
What is a vascular sheath?
A vascular sheath used in interventional surgery is a specialized medical device that provides secure and stable access to blood vessels during minimally invasive procedures. It acts as a conduit through which catheters, guidewires, and other instruments are introduced into the vascular system. These sheaths are designed with features like hemostatic valves to prevent blood loss, hydrophilic coatings for smoother insertion, and structural reinforcements to resist kinking. Vascular sheaths are essential in procedures such as angioplasty, stenting, and cardiac catheterization, enabling precise device delivery while minimizing trauma to the vessel wall and reducing the risk of complications like bleeding or thrombosis.
Related Products
References
RX ONLY. Refer to the product labels and package insert for complete warnings, precautions, potential complications, and instructions for use.
- Data on file. Pinnacle and Pinnacle TIF Tip Competitor Evaluation Report #20170019.
