GUIDEWIRES
With an unmatched balance of durability, maneuverability, crossability and device support, the GLIDEWIRE Advantage portfolio of guidewires is designed to minimize the need for multiple wire exchanges.1
Terumo Glide Technology hydrophilic coating designed for crossability and trackability for challenging lesions.
Inside Catheter - the spiraled PTFE limits the surface contact in the catheter lumen for improved tracking of the catheter on the wire.
Offering a full range of peripheral platforms: 0.035", 0.018" and 0.014"

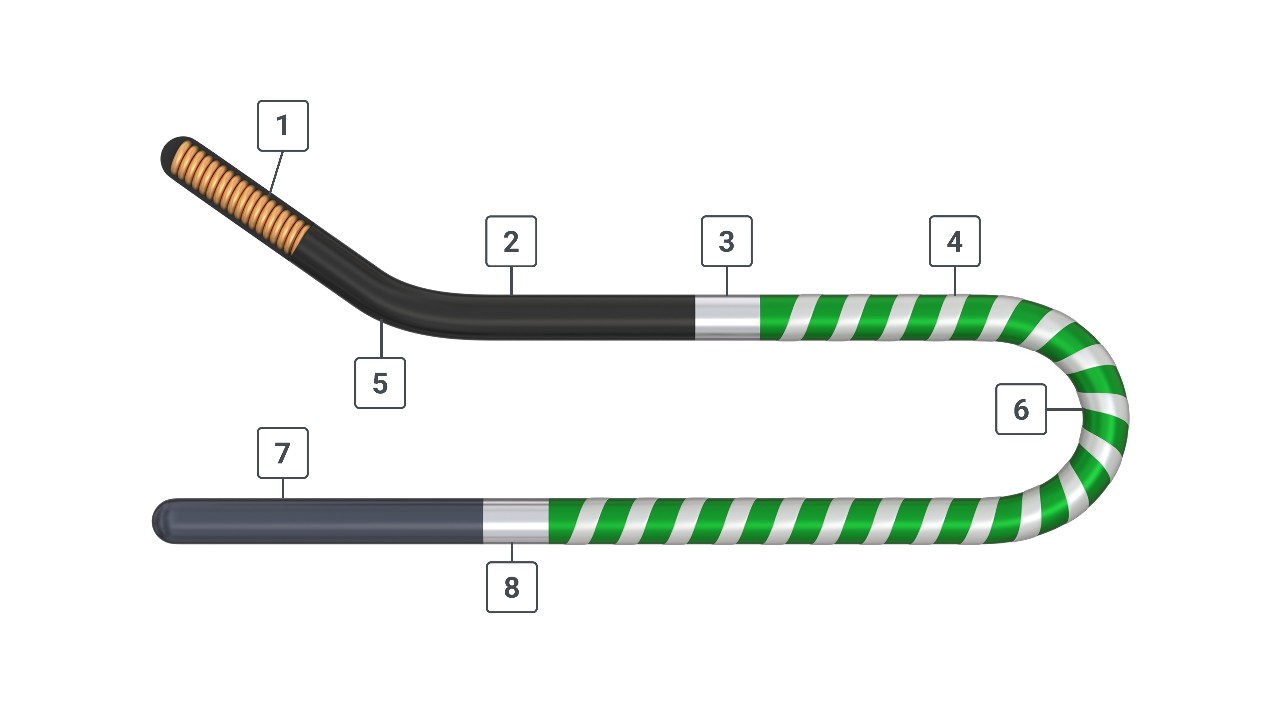

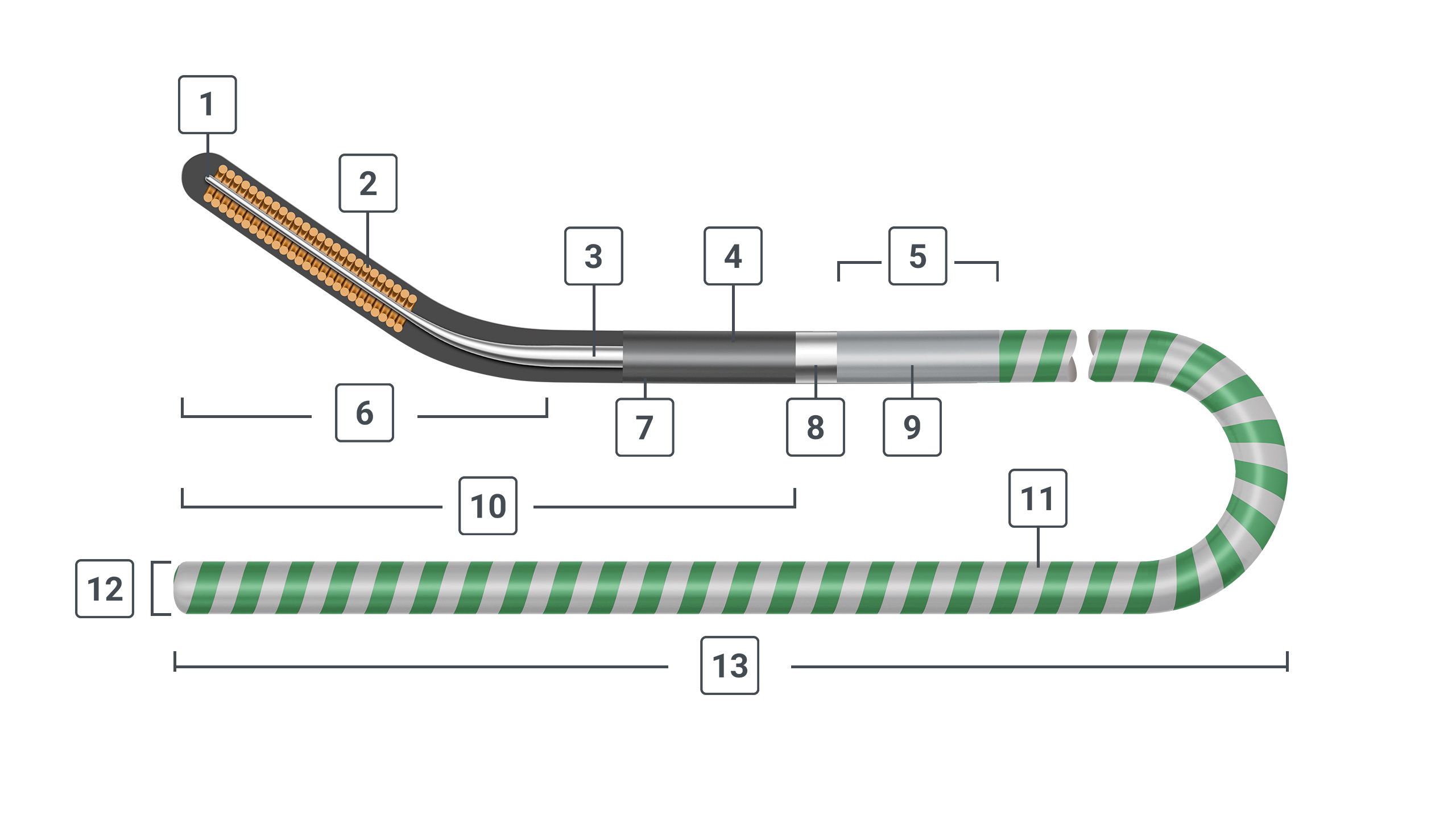

Nitinol core tip
2 cm gold coil*
TERUMO nitinol alloy core
TERUMO Glide Technology hydrophilic coating
Nitinol connection
Taper lengths: 1 cm, 5 cm
Polyurethane jacket with tungsten
Radiopaque band
Nitinol fusion joint
Glidewire construction distal 25 cm
Stiffer nitinol core with spiral PTFE coating
Diameters: 0.014", 0.018", 0.035"
Lengths: 180 cm, 260 cm, 300 cm
*Illustration not to scale
* When compared to GLIDEWIRE® Gold 0.018” and GLIDEWIRE ADVANTAGE® 0/018"

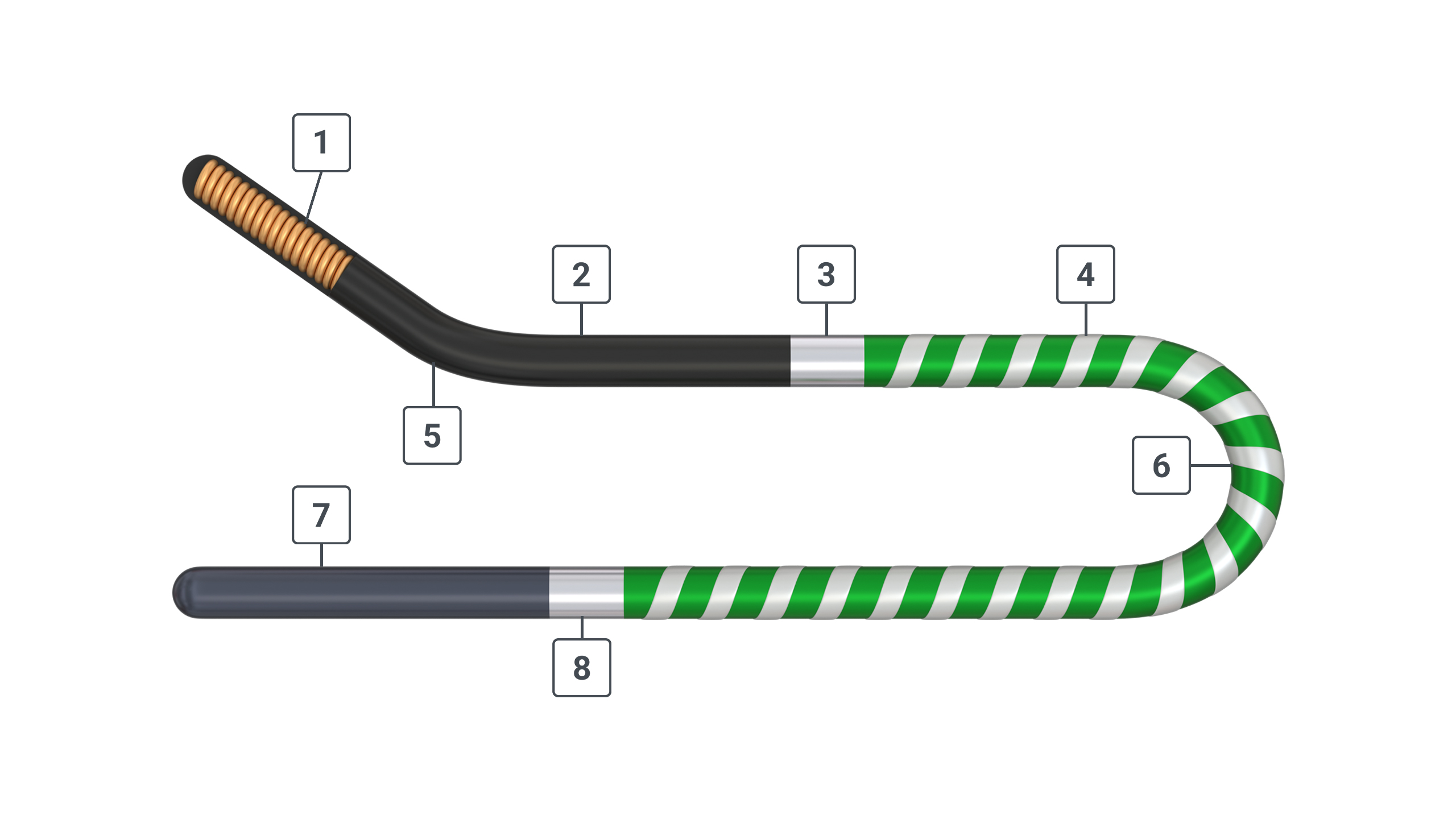

Offering the most comprehensive length of radial to peripheral wire (500cm)2.
Gold coil provides enhanced visibility
Stainless steel core shaft provides superior pushability when accessing and crossing challenging anatomy and complex lesions1*
The flexible distal and stiff proximal shafts are seamlessly connected via a proprietary fusion joint designed to provide consistent torque transfer1*
* When compared to Glidewire® (standard and Stiff)
** When compared to Glidewire Advantage® 0.035" and Glidewire® (standard and Stiff)

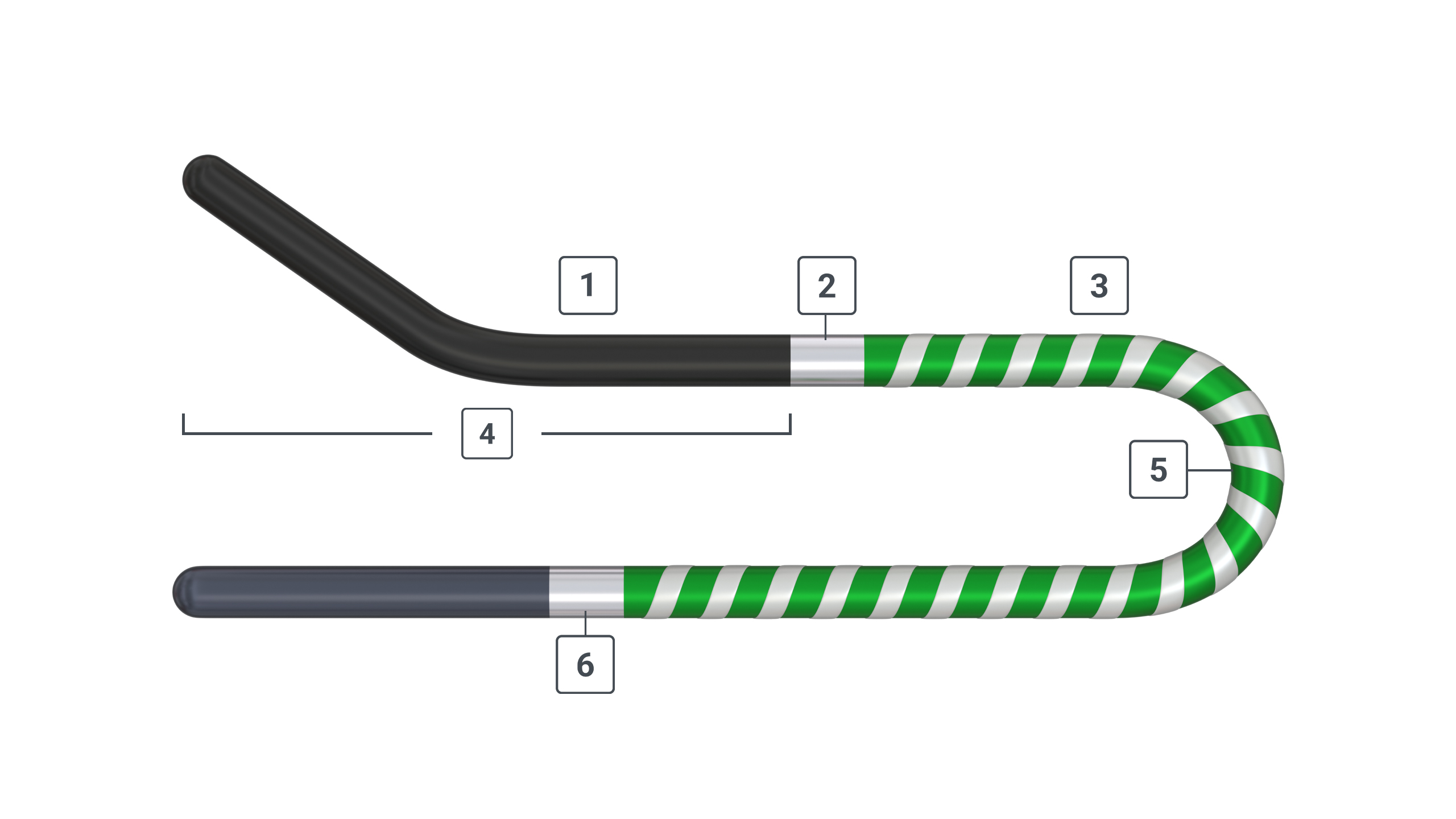

Offering the most comprehensive length of radial to peripheral wire (450cm)2.
The flexible distal and stiff proximal shafts are seamlessly connected via a proprietary fusion joint designed to provide consistent torque transfer1*
Stiffer nitinol core shaft provides superior pushability when accessing and crossing challenging anatomy and complex lesions1*,**
| PRODUCT CODE | DIAMETER | TOTAL LENGTH | FLEXIBLE TIP LENGTH | TIP SHAPE |
| GA1418 | 0.014" | 180cm | 1cm | Angle |
| GA1430 | 0.014" | 300cm | 1cm | Angle |
| GA1818 | 0.018" | 180cm | 1cm | Angle |
| GA1830 | 0.018" | 300cm | 1cm | Angle |
| GA3501 | 0.035" | 180cm | 5cm | Angle |
| GA3502 | 0.035" | 260cm | 5cm | Angle |
| PRODUCT CODE | DIAMETER | TOTAL LENGTH | DISTAL GLIDEWIRE Length | FLEXIBLE TIP LENGTH | TIP SHAPE |
| GA3535 | 0.035" | 350cm | 25cm | 5cm | Angle |
| GA3540 | 0.035" | 400cm | 25cm | 5cm | Angle |
| GA3539 | 0.035" | 400cm | 25cm | 5cm | 1.5 mm J-tip |
| GA3545 | 0.035" | 450cm | 25cm | 5cm | Angle |
| GA3544 | 0.035" | 450cm | 25cm | 5cm | 1.5 mm J-tip |
| GA1840 | 0.018" | 400cm | 25cm | 1cm | 35° Angle |
| GA1845 | 0.018" | 450cm | 25cm | 1cm | 35° Angle |
| GA1850 | 0.018" | 500cm | 25cm | 1cm | 35° Angle |
RX ONLY. Refer to the product labels and package insert for complete warnings, potential complications, and instructions for use.
