ACCESS

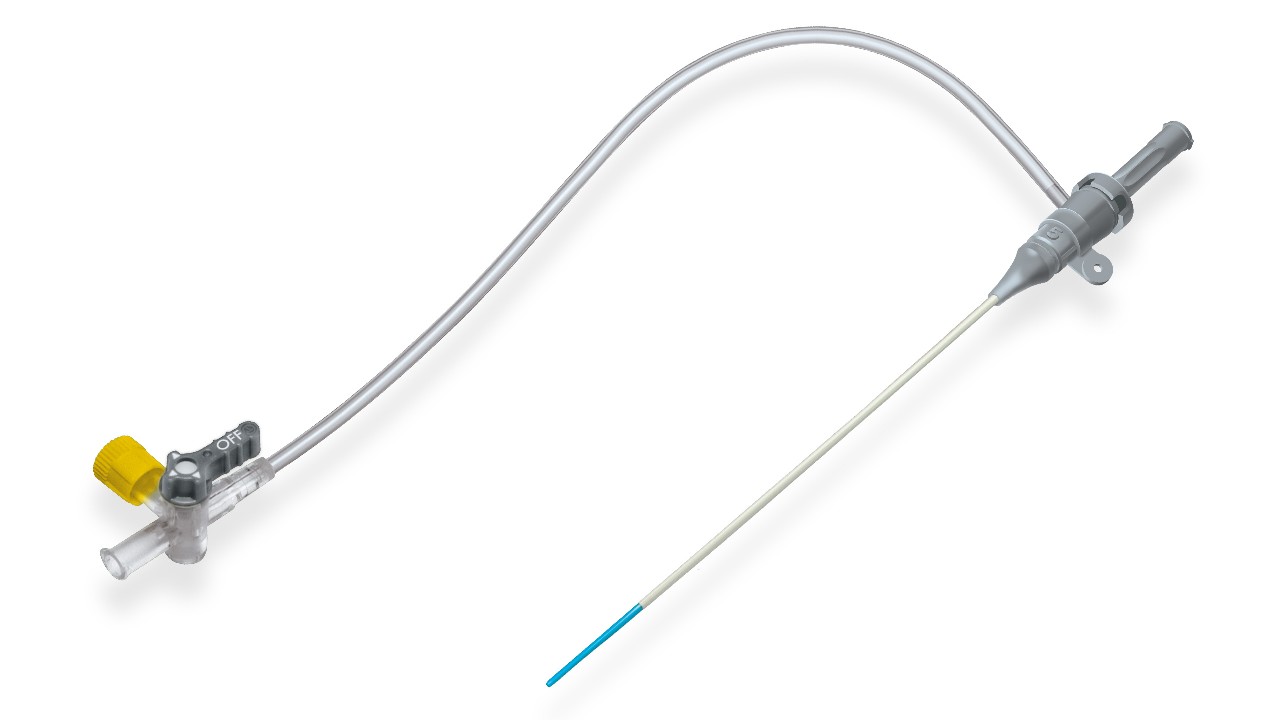

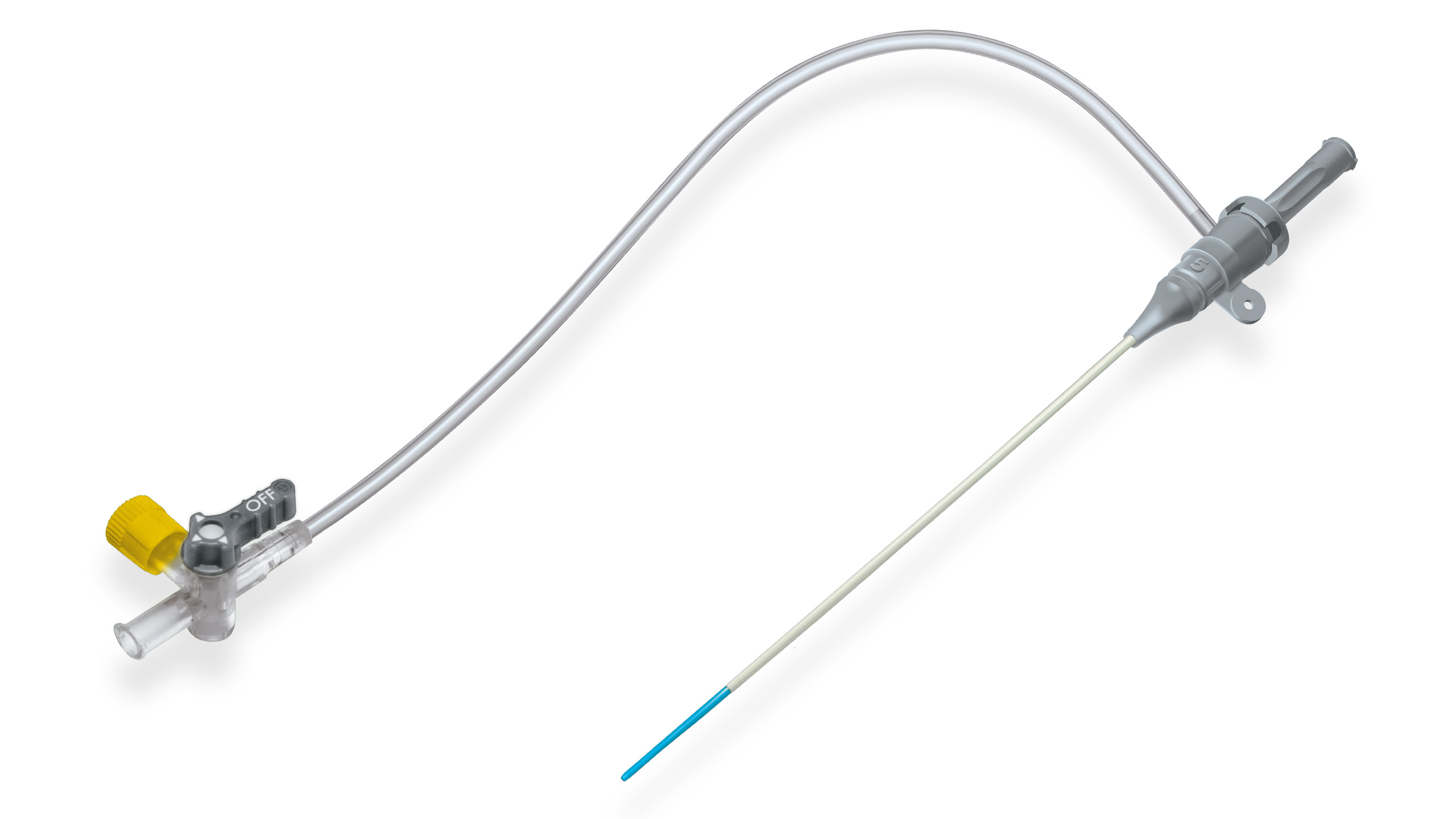

PINNACLE® Introducer Sheath
Femoral Access Sheath for Coronary or Peripheral Procedures available in 4-11F, 10 or 25cm lengths
Use with confidence
- From the maker of the #1 preferred and most used introducer sheaths on the market
Reduce complications
- Highly flexible sheath designed to resist kinking
Easy Access
- Snap-on dilator lock prevents backout during insertion
Advanced Femoral Sheath Design for Enhanced Vascular Access and Procedural Efficiency
- Smooth transition of guidewire to dilator and dilator-to-sheath
- Kink resistant design
- Small OD and large ID minimizes the size of the access site without compromising ease of device passage
- Snap-on dilator lock prevents backout during insertion
Additional Resources
PINNACLE Introducer Sheaths - Coronary Applications
| Product Code | Length | Inner Diameter | Dilator Protuding Length | Mini Guidewire Diameter | Mini Guidewire Length |
| RSS402 | 10 | 4 | 2.5 | .035* | 45 |
| RSS502 | 10 | 5 | 2.5 | .038* | 45 |
| RSS602 | 10 | 6 | 2.5 | .038* | 45 |
| RSS702 | 10 | 7 | 2.5 | .038* | 45 |
| RSS802 | 10 | 8 | 2.5 | .038* | 45 |
| RSS902 | 10 | 9 | 2.5 | .038* | 45 |
| RSS002 | 10 | 10 | 2.5 | .038* | 45 |
| RSS102 | 10 | 11 | 2.5 | .038* | 45 |
| RSS404 | 10 | 4 | 2.5 | ||
| RSS504 | 10 | 5 | 2.5 | ||
| RSS604 | 10 | 6 | 2.5 | ||
| RSS704 | 10 | 7 | 2.5 | ||
| RSS804 | 10 | 8 | 2.5 | ||
| RSS904 | 10 | 9 | 2.5 | ||
| RSS004 | 10 | 10 | 2.5 | ||
| RSS104 | 10 | 11 | 2.5 | ||
| RSS506 | 25 | 5 | 2.5 | ||
| RSS606 | 25 | 6 | 2.5 | ||
| RSS706 | 25 | 7 | 2.5 | ||
| RSS806 | 25 | 8 | 2.5 | ||
| RSS906 | 25 | 9 | 2.5 | ||
| RSS006 | 25 | 10 | 2.5 | ||
| RSS106 | 25 | 11 | 2.5 |
*Mini stainless steel spring coil guidewire included. Maximum guidewire compatible size: 0.035" for 4 Fr, 0.038" for all others
PINNACLE Introducer Sheaths - Peripheral Applications
| Product Code | Length | Inner Diameter | Dilator Protuding Length | Mini Guidewire Diameter | Mini Guidewire Length |
| RSS401 | 10 | 4 | 2.5 | .035* | 45 |
| RSS501 | 10 | 5 | 2.5 | .035* | 45 |
| RSS601 | 10 | 6 | 2.5 | .035* | 45 |
| RSS701 | 10 | 7 | 2.5 | .035* | 45 |
| RSS801 | 10 | 8 | 2.5 | .035* | 45 |
| RSS901 | 10 | 9 | 2.5 | .035* | 45 |
| RSS001 | 10 | 10 | 2.5 | .035* | 45 |
| RSS101 | 10 | 11 | 2.5 | .035* | 45 |
| RSS403 | 10 | 4 | 2.5 | ||
| RSS503 | 10 | 5 | 2.5 | ||
| RSS603 | 10 | 6 | 2.5 | ||
| RSS703 | 10 | 7 | 2.5 | ||
| RSS803 | 10 | 8 | 2.5 | ||
| RSS903 | 10 | 9 | 2.5 | ||
| RSS003 | 10 | 10 | 2.5 | ||
| RSS103 | 10 | 11 | 2.5 | ||
| RSS505 | 25 | 5 | 2.5 | ||
| RSS605 | 25 | 6 | 2.5 | ||
| RSS705 | 25 | 7 | 2.5 | ||
| RSS805 | 25 | 8 | 2.5 | ||
| RSS905 | 25 | 9 | 2.5 | ||
| RSS005 | 25 | 10 | 2.5 | ||
| RSS105 | 25 | 11 | 2.5 |
*Mini stainless steel spring coil guidewire included. Maximum guidewire compatible size: 0.035" for 4 Fr, 0.038" for all others
What is a cardiac sheath?
A cardiac sheath is a small, flexible tube inserted into a blood vessel—typically in the wrist or groin—during cardiac catheterization. It provides a stable access point for catheters and other devices to reach the heart’s chambers or coronary arteries. The sheath helps minimize trauma, control bleeding, and allows for smooth device exchange during diagnostic or interventional heart procedures like angioplasty or stent placement.
Related Products
References
RX ONLY. Refer to the product labels and package insert for complete warnings, precautions, potential complications, and instructions for use.
