HEARTRAIL® III Guiding Catheter
A family of radial guiding catheters that provides enhanced back up support in comparison to standard femoral guiding catheter shapes - resulting in simplified procedures.1
Unique Design
- Flexible Shaft: Designed for trackability even in tortuous vessels
- High Radiopacity: Enhanced by distal braiding for visibility under fluoroscopy

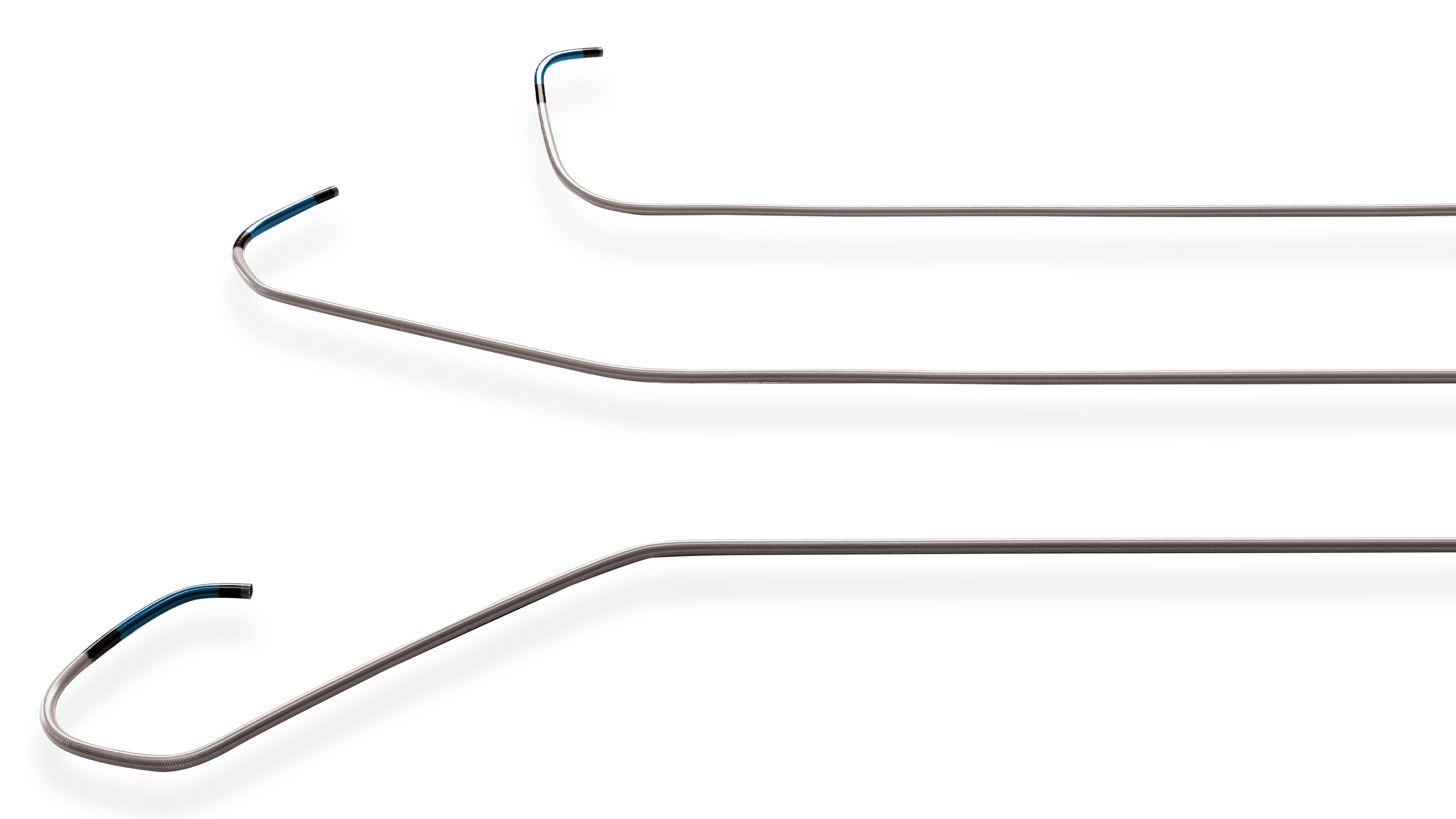

Universal Shapes
- Offer capability of accessing the right and left coronary arteries, potentially avoiding catheter exchanges
Enhanced Back Up Support

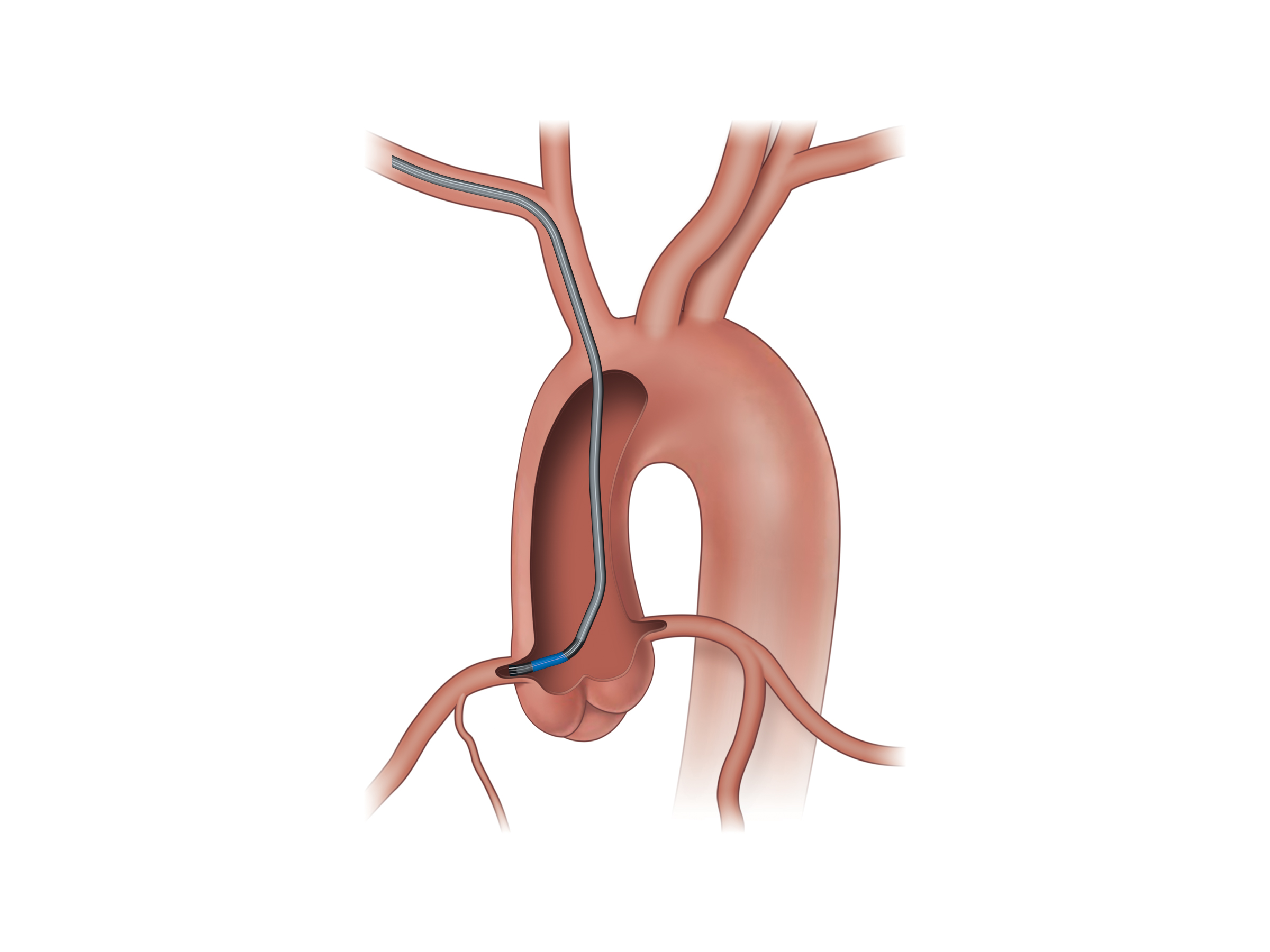

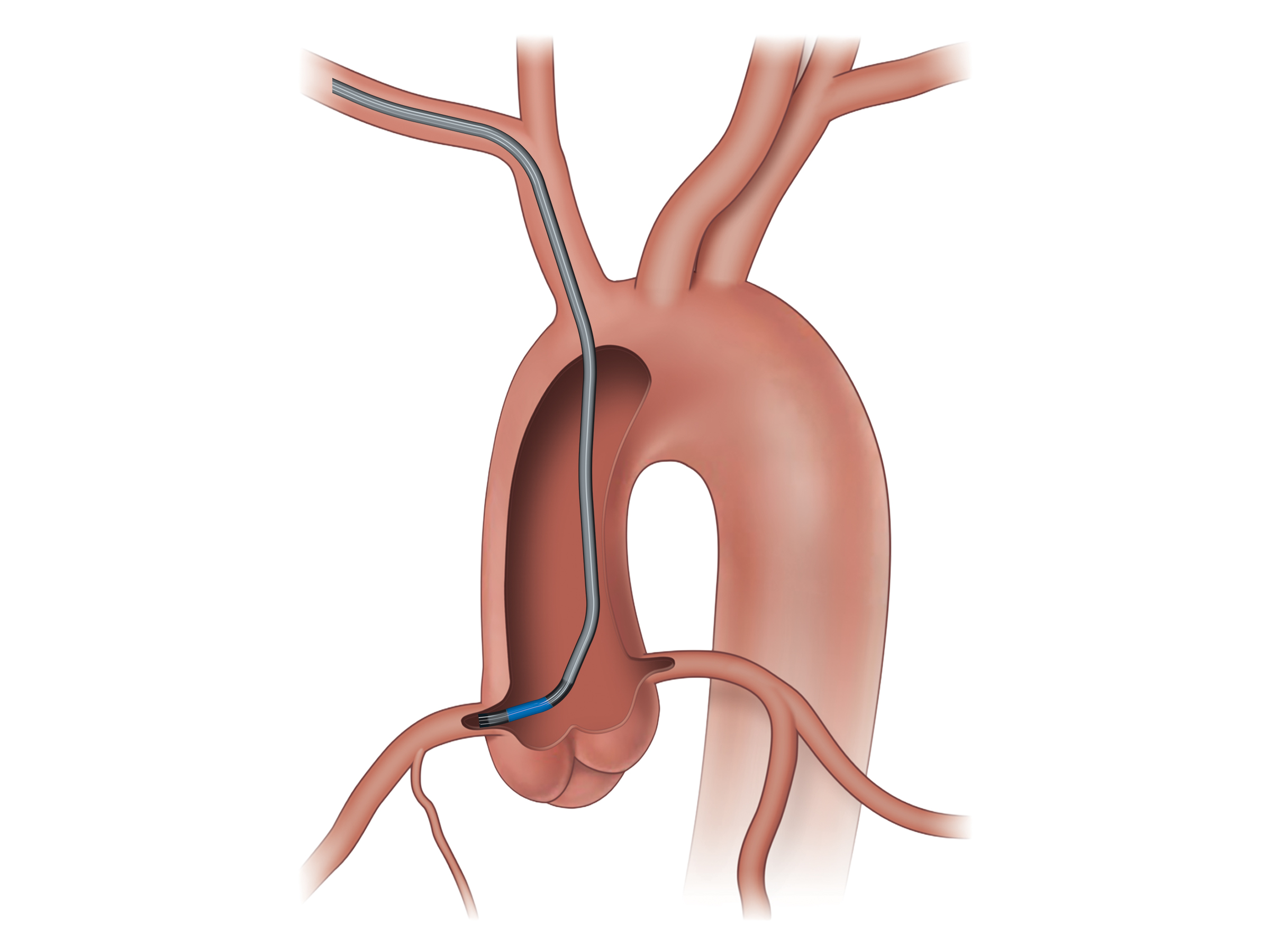

- Catheter designed to use contralateral wall resulting in enhanced back-up support
Radial-Specific Catheter That Provides Enhanced Back-Up Support

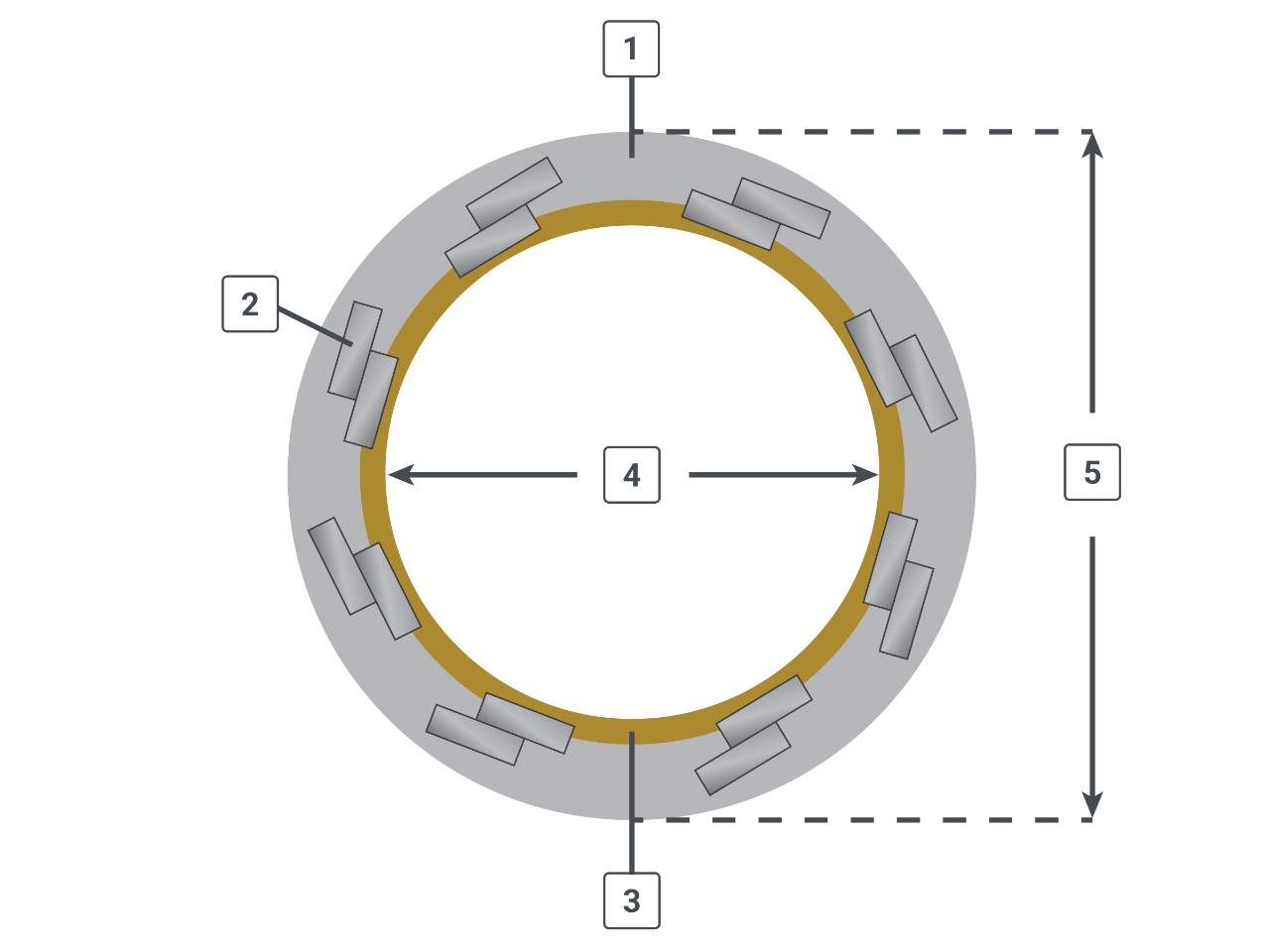

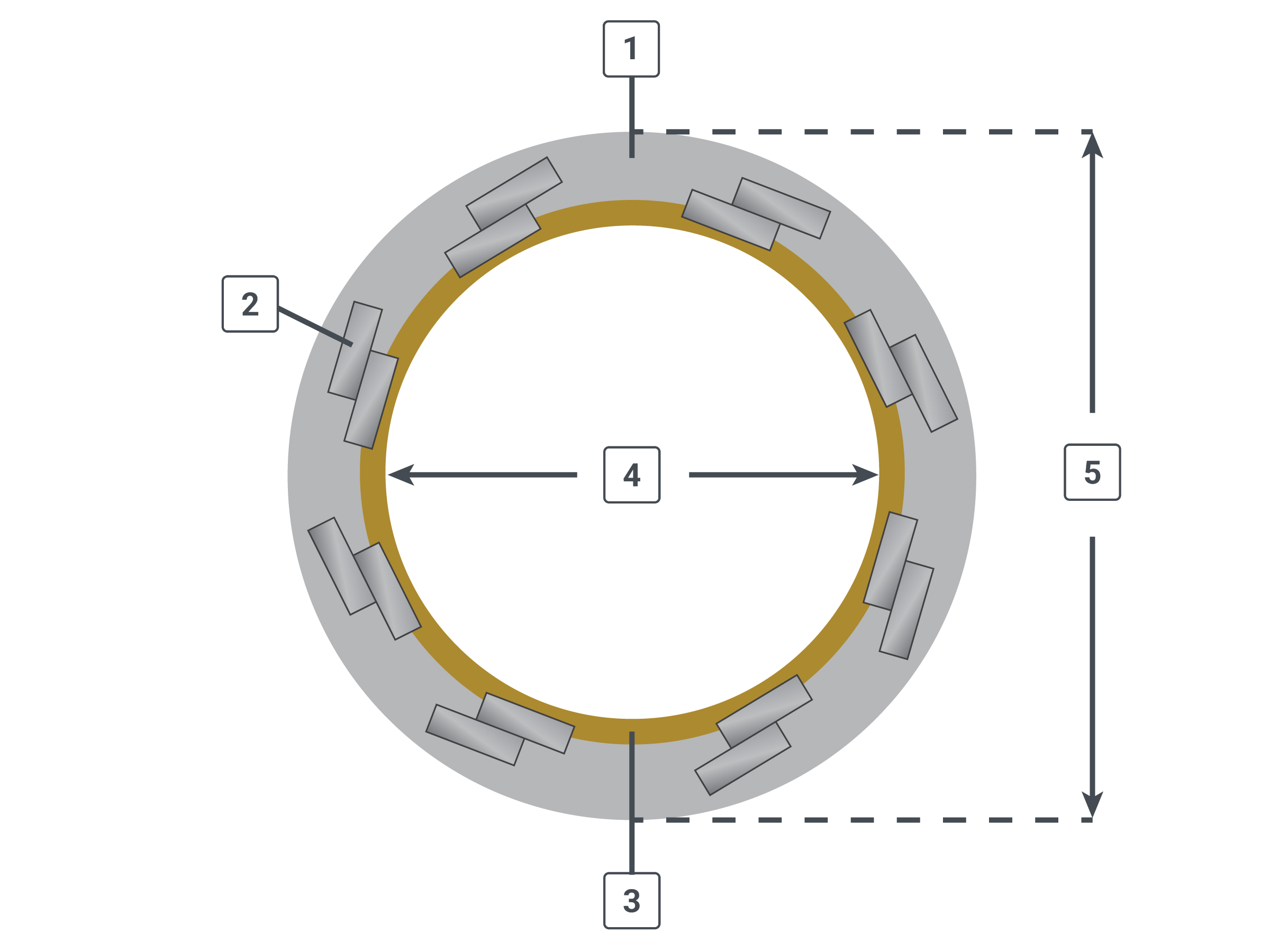

Stainless Steel Flat Wire Braid Provides Optimal Flexibility, Strength and Torque Control

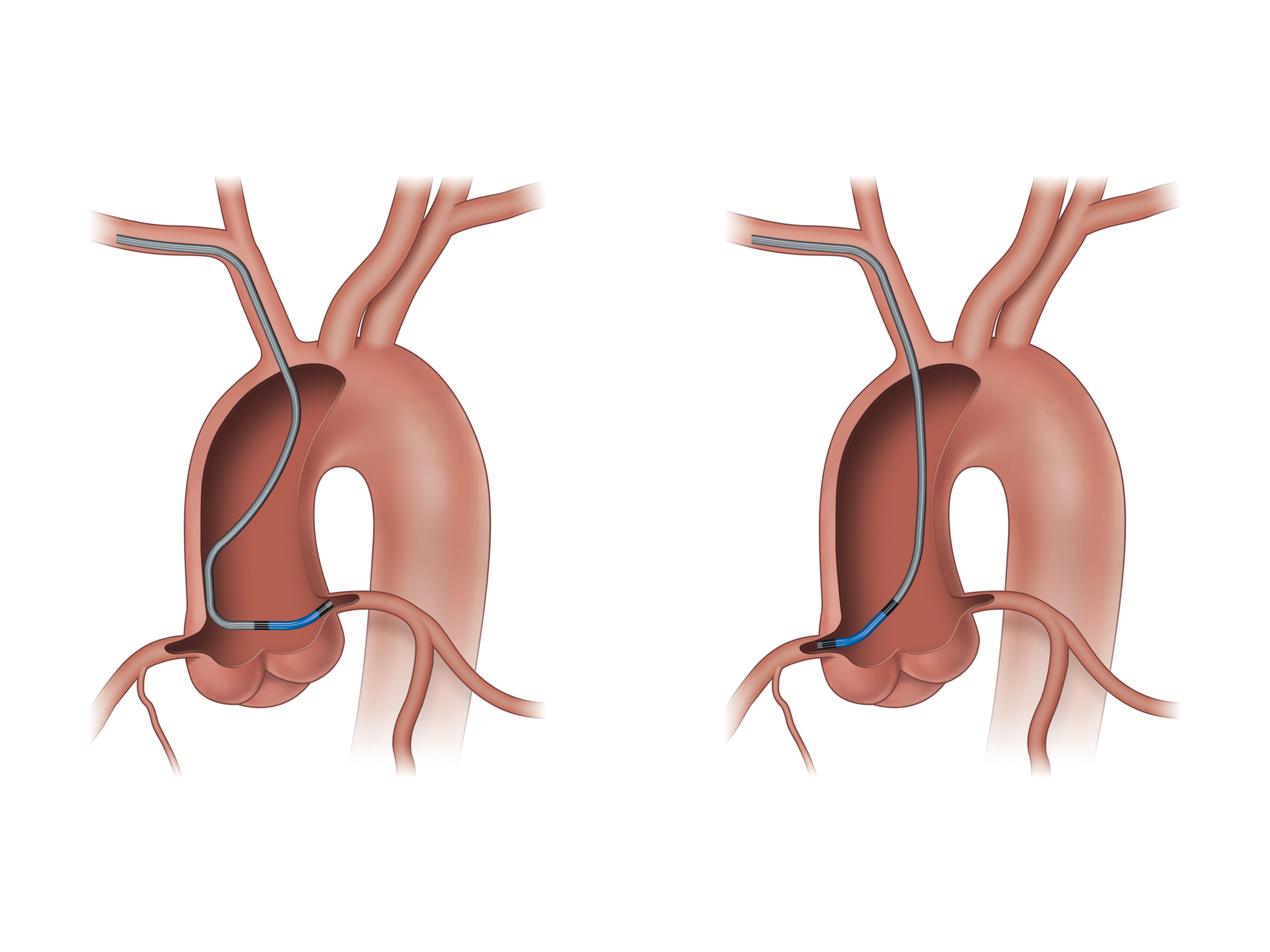

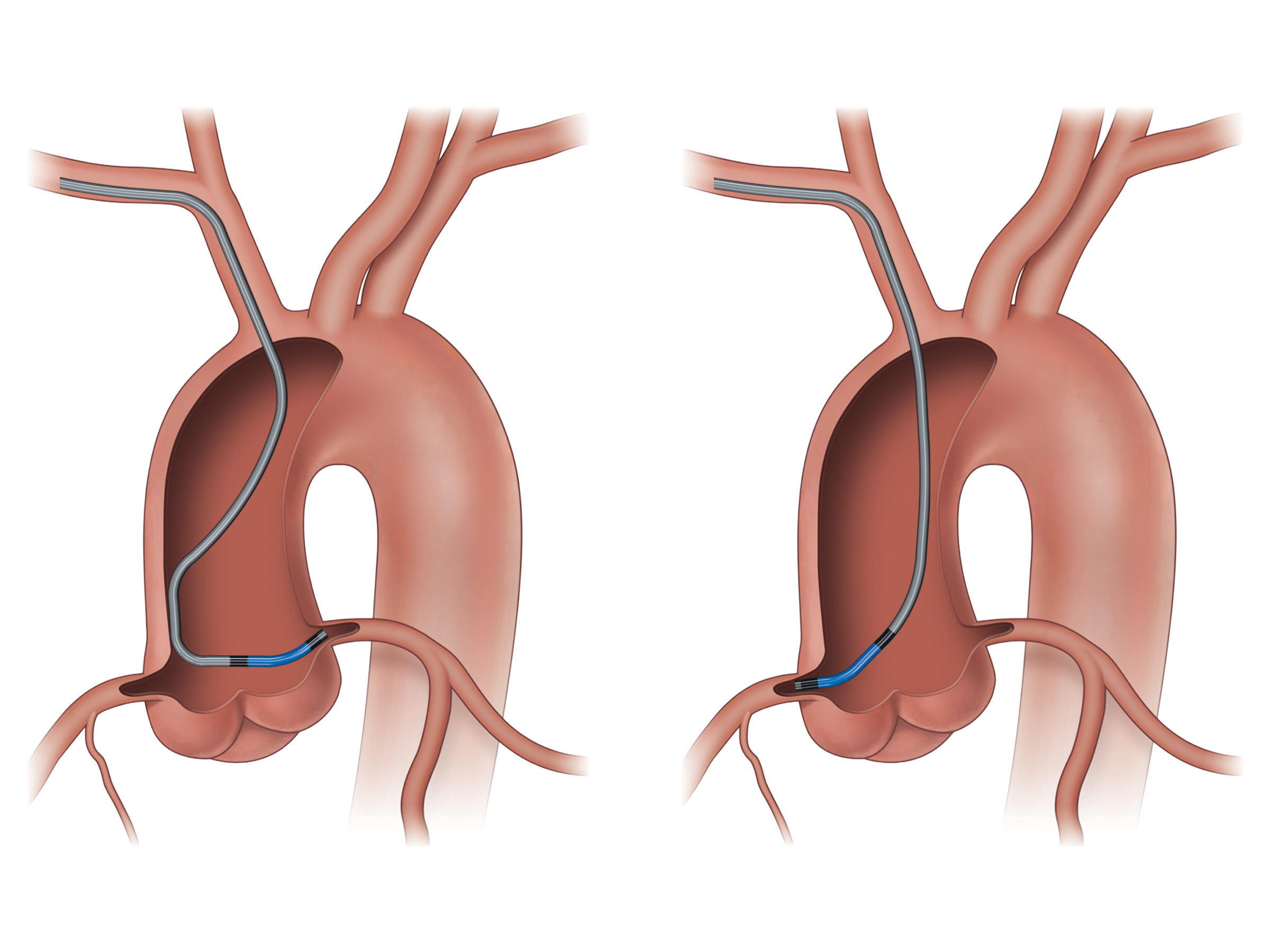

Ikari Left is a Universal Catheter Capable of Accessing Both the RCA and LCA
Heartrail Guiding Catheters Provide Enhanced Back-Support1
Additional Resources
HEARTRAIL® III Guiding Catheter Product Codes
| Shape Category | Shape Name | Product Code | Size (Fr) | Length (cm) | Side Holes |
| Ikari Left | IL3.5 | 40-5370 | 5 Fr | 100 | 0 |
| 40-6370 | 6 Fr | 100 | 0 | ||
| 40-6371 | 6 Fr | 100 | 2 | ||
| IL3.75 | 40-5372 | 5 Fr | 100 | 0 | |
| 40-6372 | 6 Fr | 100 | 0 | ||
| 40-6377 | 6 Fr | 100 | 2 | ||
| IL4.0 | 40-5373 | 5 Fr | 100 | 0 | |
| 40-6373 | 6 Fr | 100 | 0 | ||
| 40-6374 | 6 Fr | 100 | 2 | ||
| IL4.5 | 40-5375 | 5 Fr | 100 | 0 | |
| 40-6375 | 6 Fr | 100 | 0 | ||
| 40-6376 | 6 Fr | 100 | 2 | ||
| Ikari Right | IR1.0 | 40-5380 | 5 Fr | 100 | 0 |
| 40-6380 | 6 Fr | 100 | 0 | ||
| 40-6383 | 6 Fr | 100 | 2 | ||
| IR1.5 | 40-5381 | 5 Fr | 100 | 0 | |
| 40-6381 | 6 Fr | 100 | 0 | ||
| 40-6384 | 6 Fr | 100 | 2 | ||
| IR2.0 | 40-5382 | 5 Fr | 100 | 0 | |
| 40-6382 | 6 Fr | 100 | 0 | ||
| 40-6385 | 6 Fr | 100 | 2 | ||
| TIG | TIG4.0 | 40-5311 | 5 Fr | 100 | 0 |
| 40-6311 | 6 Fr | 100 | 0 |
Related Products
References
RX ONLY. Refer to the product labels and package insert for complete warnings, precautions, potential complications, and instructions for use.
- Ikari Y, Nagaoka M, Kim JY, Morino Y, Tanabe T. The physics of guiding catheters for the left coronary artery in transfemoral and transradial interventions. J Invasive Cardiol. 2005 Dec; 17(12): 636-641.
