CATHETERS

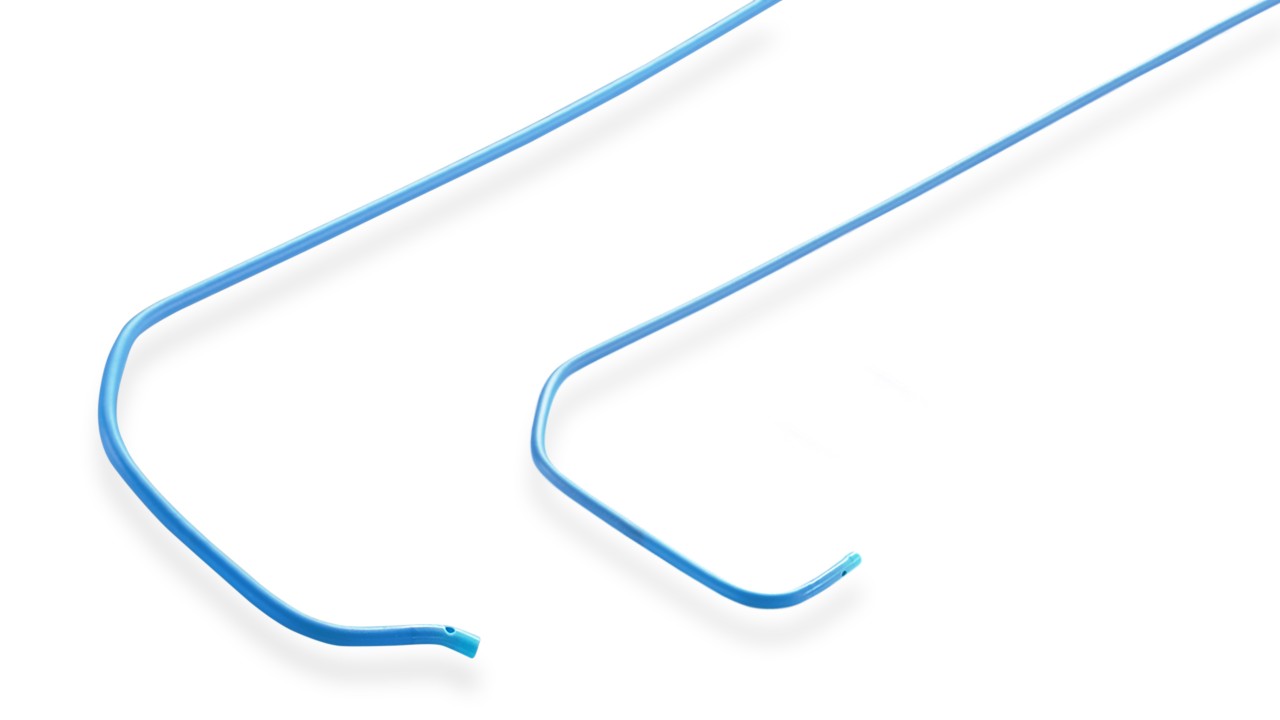

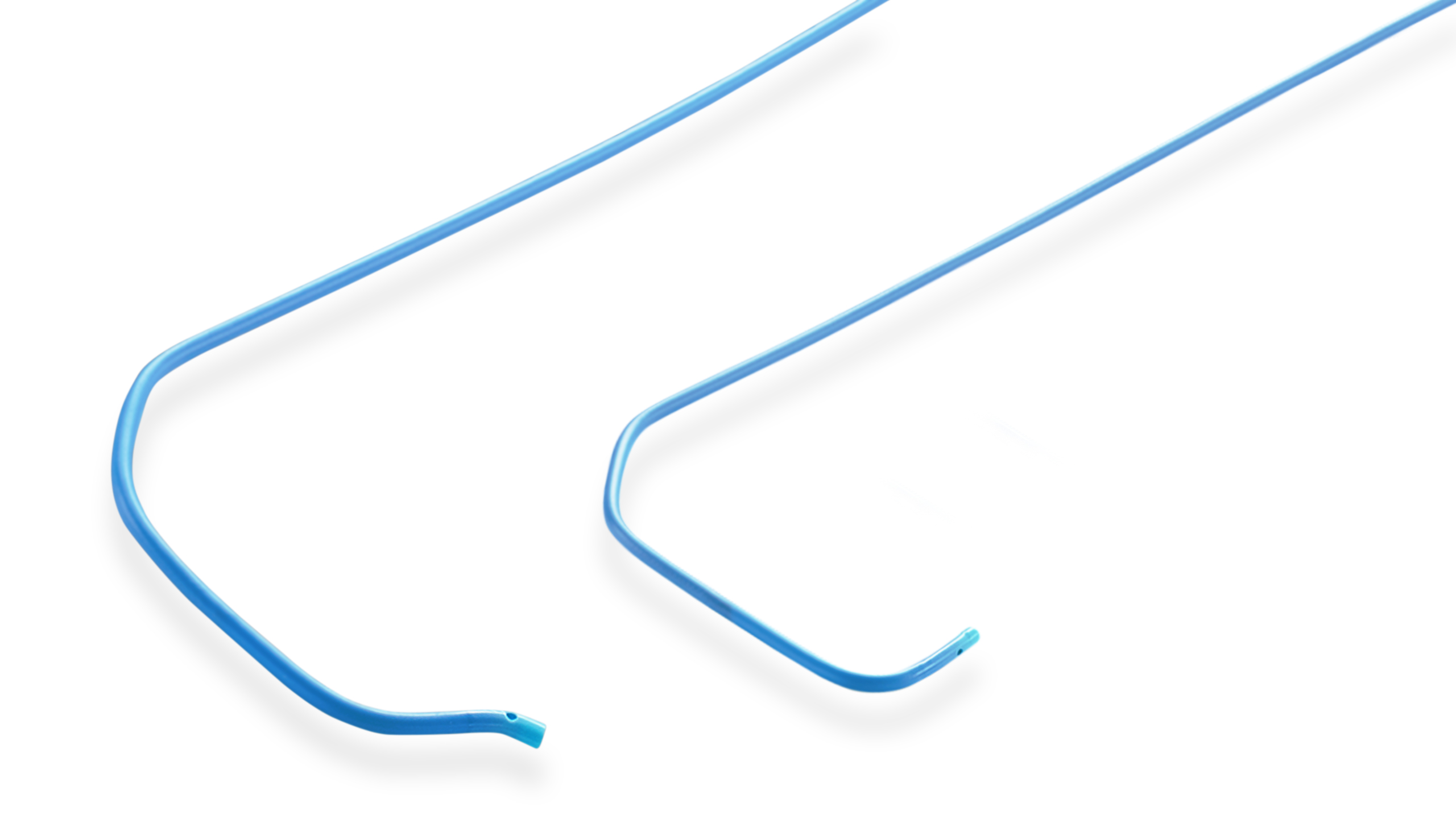

OPTITORQUE® Diagnostic Catheter
A complete line of coronary diagnostic catheters designed for superior torque control and precise placement.1
Excellent Trackability
- Trackability in tortuous anatomy while navigating the radial artery1,a
Superior Flow Rates
- Large lumen allows for high flow of contrast media1
Torque Control

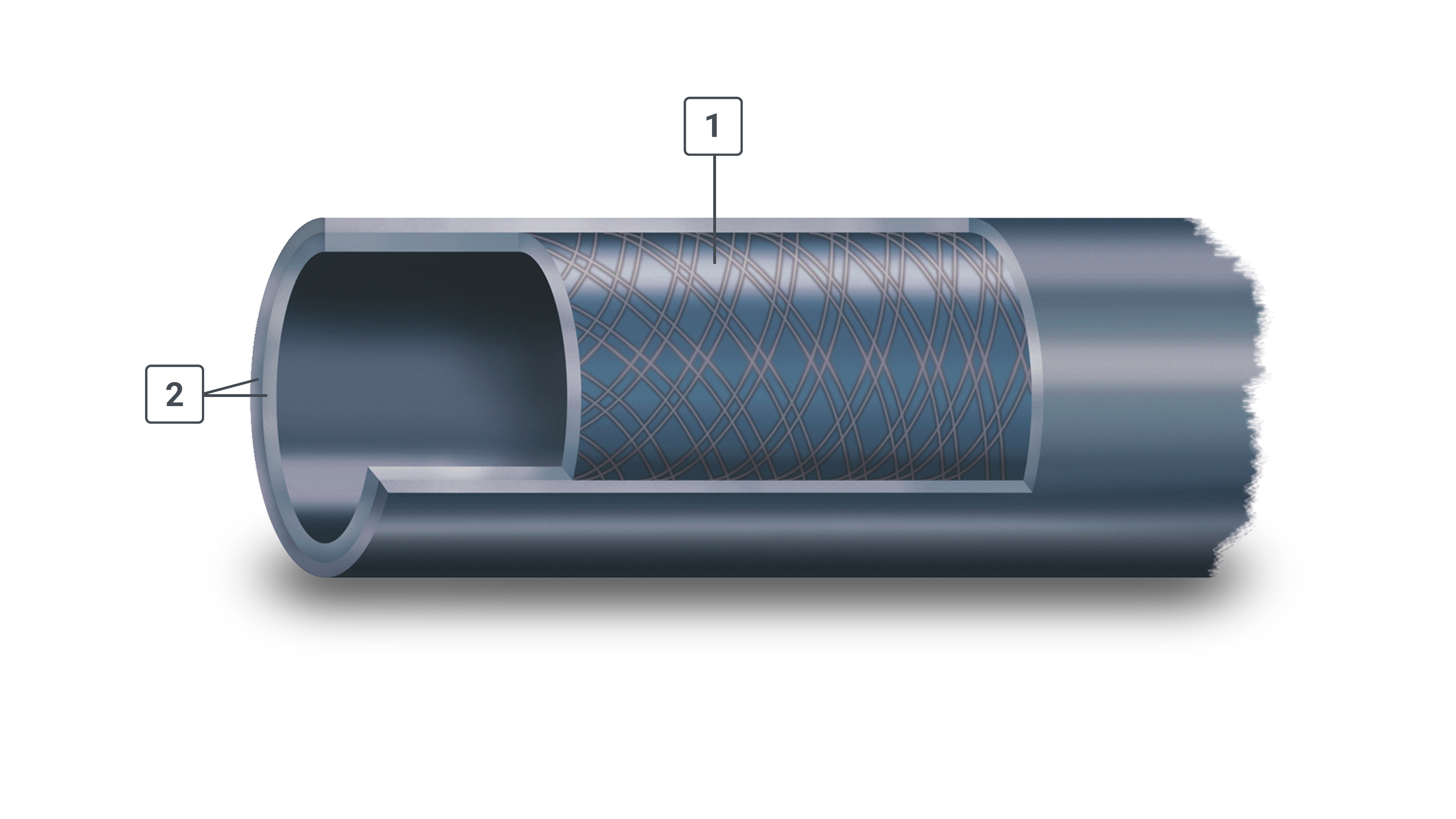

- Superior torque control for precise placement1,a due to double-braided stainless steel mesh middle layer
About the OPTITORQUE Coronary Diagnostic Catheter

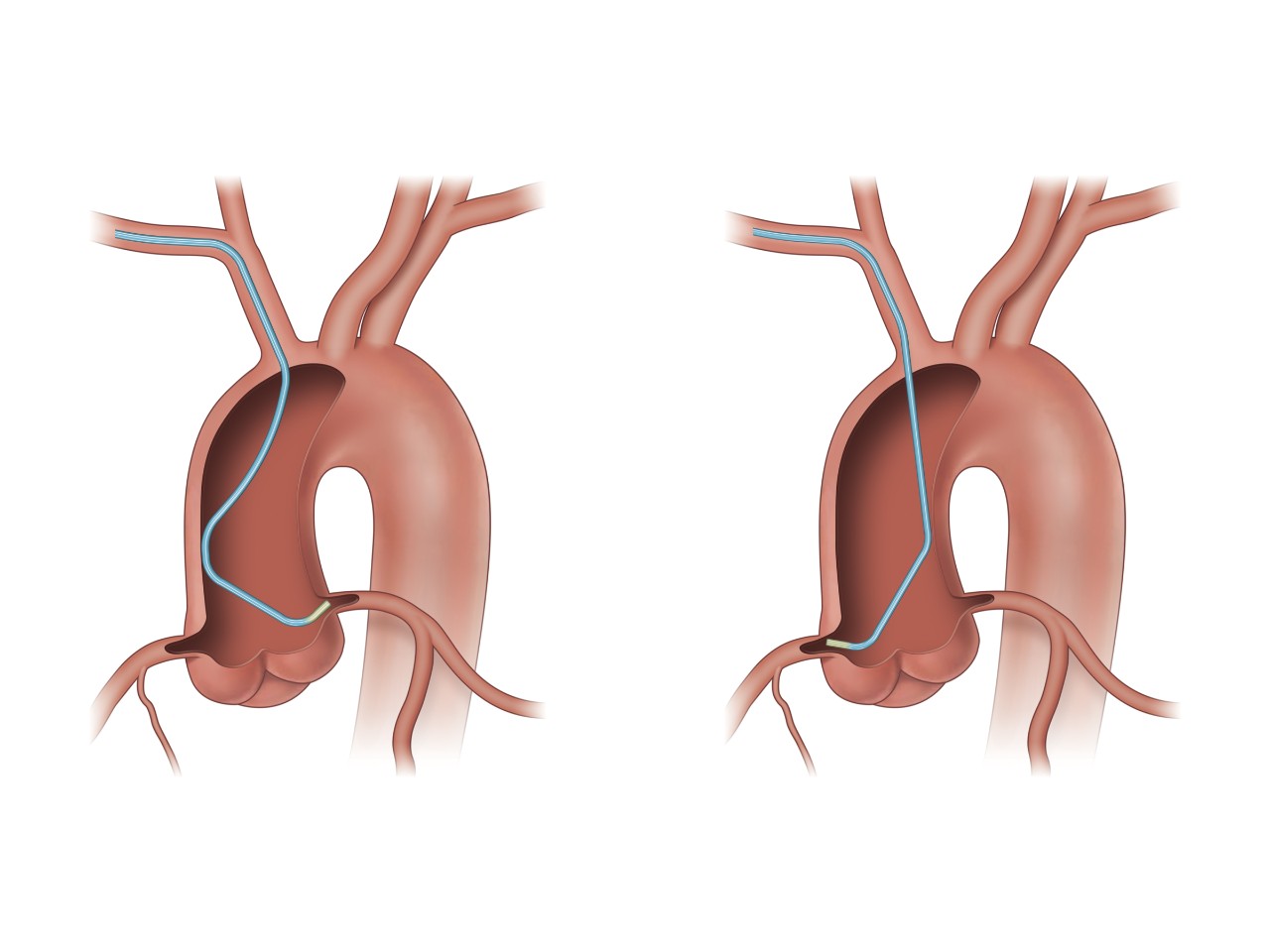

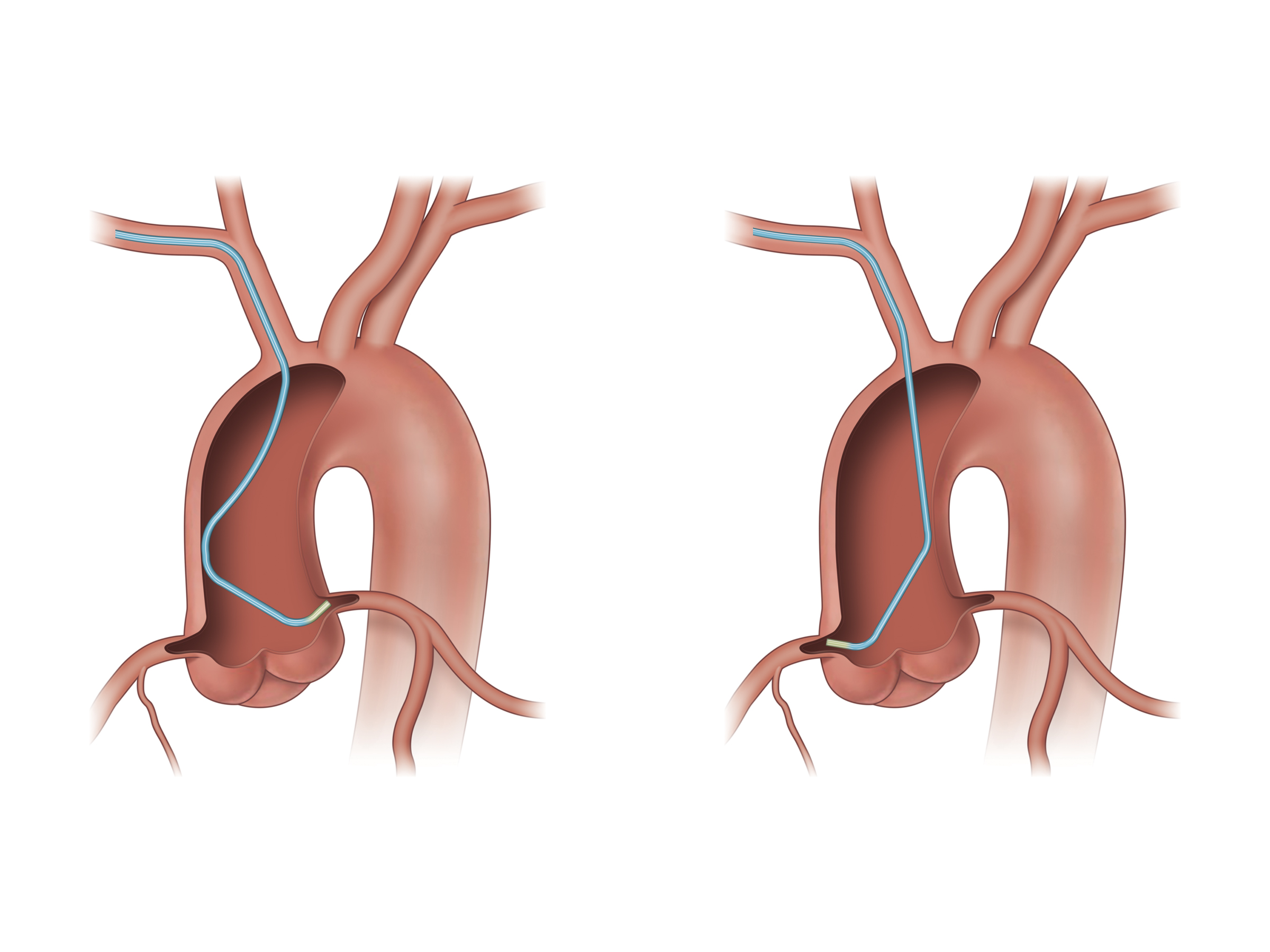

- Excellent back-up support for angiography of both RCA and LCA with a single catheter1,a

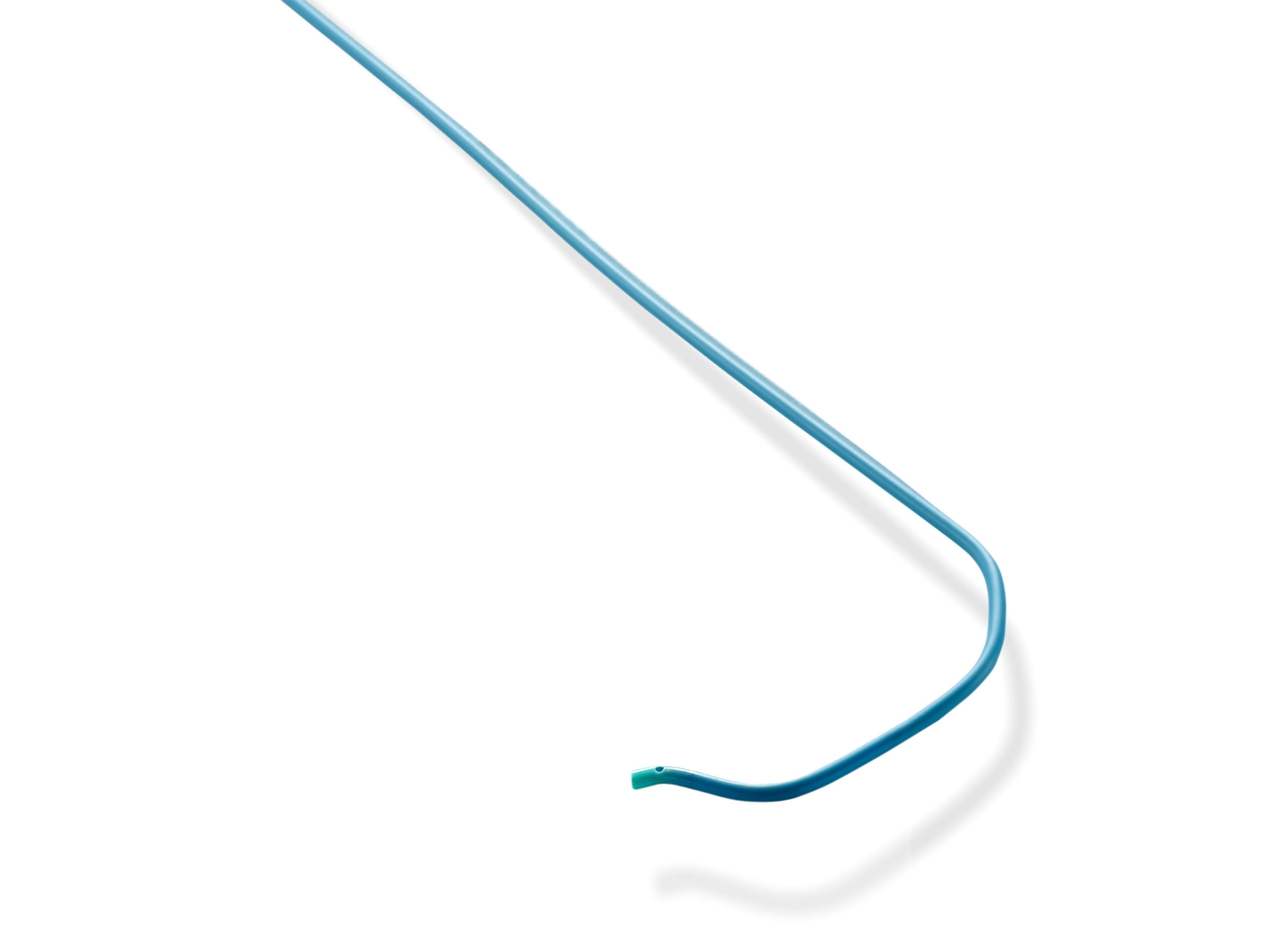

- Universal design eliminates the need for catheter exchanges and potentially shortens procedural and fluoroscopic time2
- Large lumen allows high flow of contrast media and allows downsizing of French size
- Excellent trackability in tortuous anatomy while navigating the radial artery1,a
- Superior flow rates for diagnostic imaging1,a
Additional Resources
OPTITORQUE Diagnostic Catheter Radial-Specific Shapes
| Shape Category | Product Code 5 Fr / 1.70 mm |
Product Code 6 Fr / 2.00 mm |
Shape Name | Length (cm) | Side Holes |
| Tiger | 40-5011 | 40-6011 | Radial TIG 4.0 | 100 | 1 |
| 40-5013 | 40-6013 | Radial TIG 4.0 | 110 | 1 | |
| 40-5012 | 40-6012 | Radial TIG 4.5 | 100 | 1 | |
| 40-5014 | 40-6014 | Radial TIG 4.5 | 110 | 1 | |
| Jacky | 40-5021 | 40-6021 | Jacky Radial (Curve Size 3.5) | 100 | 2 |
| 40-5023 | 40-6023 | Jacky Radial (Curve Size 3.5) | 110 | 2 | |
| 40-5022 | 40-6022 | Sarah Radial (Curve Size 4.0) | 100 | 2 | |
| 40-5024 | 40-6024 | Sarah Radial (Curve Size 4.0) | 110 | 2 |
OPTITORQUE Diagnostic Catheter Classic Shapes
| Shape Category | Product Code 5 Fr / 1.70 mm |
Product Code 6 Fr / 2.00 mm |
Shape Name (cm) | Length Holes | Side Tip | Shape |
|---|---|---|---|---|---|---|
| Pigtail | 40-5030 | 40-6030 | Straight Pigtail | 110 | 6 | |
| 40-5031 | 40-6031 | Angled Pigtail 155° | 110 | 6 | ||
| Judkins Left | 40-5040 | 40-6040 | JL 3.5 (Judkins Left 3.5 cm) | 100 | ||
| 40-5041 | 40-6041 | JL 4.0 (Judkins Left 4.0 cm) | 100 | |||
| 40-5042 | JL 5.0 (Judkins Left 5.0 cm) | 100 | ||||
| Judkins Right | 40-5043 | 40-6043 | JR 3.5 (Judkins Right 3.5 cm) | 100 | ||
| 40-5044 | 40-6044 | JR 4.0 (Judkins Right 4.0 cm) | 100 | |||
| 40-5045 | JR 5.0 (Judkins Right 5.0 cm) | 100 | ||||
| Bypass | 40-5050 | 40-6050 | Internal Mammary | 100 | ||
| Amplatz | 40-5060 | AL 1 (Amplatz Left Small Type) | 100 | |||
| 40-5061 | AL 2 (Amplatz Left Middle Type) | 100 |
Related Products
References
RX ONLY. Refer to the product labels and package insert for complete warnings, precautions, potential complications, and instructions for use.
1. Data on file
a. When compared to leading competitors
