ACCESS

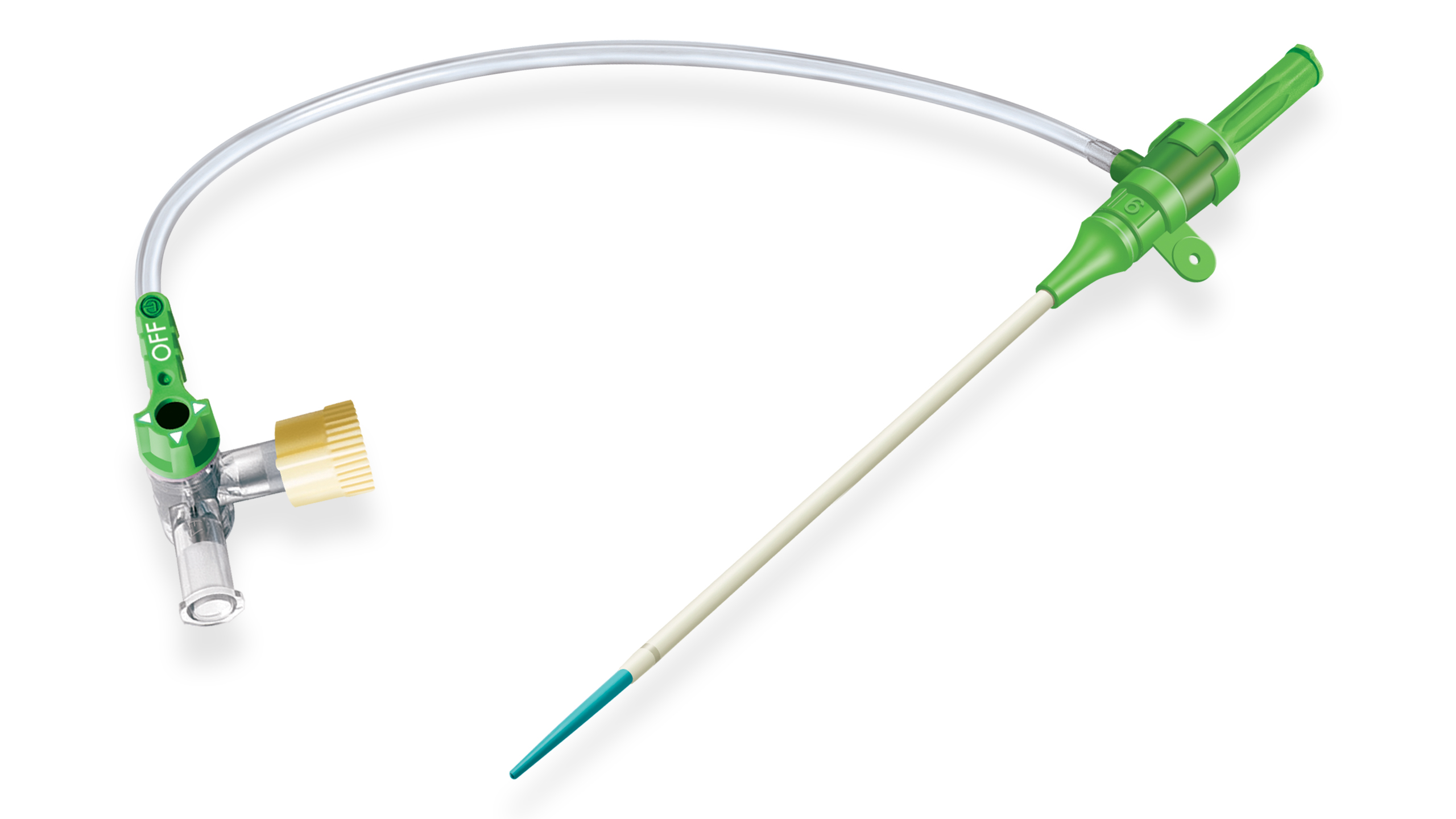

PINNACLE® R/O II Radiopaque Marker Introducer Sheath
Radiopaque Marker Introducer Sheaths available from 4-9FR, lengths of 6cm, 10cm and 25cm to meet all of your procedural needs.
Use With Confidence
- Hub has suture eye for securing sheath to skin and is color coded for accurate sizing
Increase Efficiency
- Platinum/Iridium radiopaque marker band is designed to enhance/improve visibility
Easy Access
- Smooth transition of guidewire-to-dilator and dilator-to-sheath allows easy access
Radiopaque Marker Introducer Sheath Available In a Range of Introducer Sheath Sizes
Platinum/iridium radiopaque marker band is designed to enhance visibility
- Smooth surface over the radiopaque marker reduces friction upon insertion and precision placement of the distal tip1
- Small OD and large ID minimizes the size of the access site without compromising ease of device passage1
- Kink resistant design and material1
- Smooth transition of guidewire-to-dilator and dilator-to-sheath1
Additional Resources
| Product Code | Length (cm) | Inner Diameter (Fr) | Dilator Protruding Length (cm) | Mini Guidewire Diameter (in) |
| RSB401 | 6 | 4 | 2.5 | |
| RSB501 | 6 | 5 | 2.5 | |
| RSB601 | 6 | 6 | 2.5 | |
| RSB701 | 6 | 7 | 2.5 | |
| RSB801 | 6 | 8 | 2.5 | |
| RSB901 | 6 | 9 | 2.5 | |
| RSB402 | 10 | 4 | 2.5 | |
| RSB502 | 10 | 5 | 2.5 | |
| RSB602 | 10 | 6 | 2.5 | |
| RSB702 | 10 | 7 | 2.5 | |
| RSB802 | 10 | 8 | 2.5 | |
| RSB902 | 10 | 9 | 2.5 | |
| RSB403 | 25 | 4 | 2.5 | |
| RSB503 | 25 | 5 | 2.5 | |
| RSB603 | 25 | 6 | 2.5 | |
| RSB703 | 25 | 7 | 2.5 | |
| RSB803 | 25 | 8 | 2.5 | |
| RSB903 | 25 | 9 | 2.5 | |
| RSB411 | 6 | 4 | 2.5 | 0.035 |
| RSB511 | 6 | 5 | 2.5 | 0.038 |
| RSB611 | 6 | 6 | 2.5 | 0.038 |
| RSB711 | 6 | 7 | 2.5 | 0.038 |
| RSB811 | 6 | 8 | 2.5 | 0.038 |
| RSB911 | 6 | 9 | 2.5 | 0.038 |
| RSB412 | 10 | 4 | 2.5 | 0.035 |
| RSB512 | 10 | 5 | 2.5 | 0.038 |
| RSB612 | 10 | 6 | 2.5 | 0.038 |
| RSB712 | 10 | 7 | 2.5 | 0.038 |
| RSB812 | 10 | 8 | 2.5 | 0.038 |
| RSB912 | 10 | 9 | 2.5 | 0.038 |
What is an introducer in medical terms?
A medical introducer is a flexible, hollow sheath used to create a safe and stable access point into a blood vessel or body cavity. It allows for the smooth insertion and exchange of instruments like catheters and guidewires during minimally invasive procedures, reducing tissue trauma and improving procedural safety.
Related Products
References
RX ONLY. Refer to the product labels and package insert for complete warnings, precautions, potential complications, and instructions for use.
References:
- Data on File
