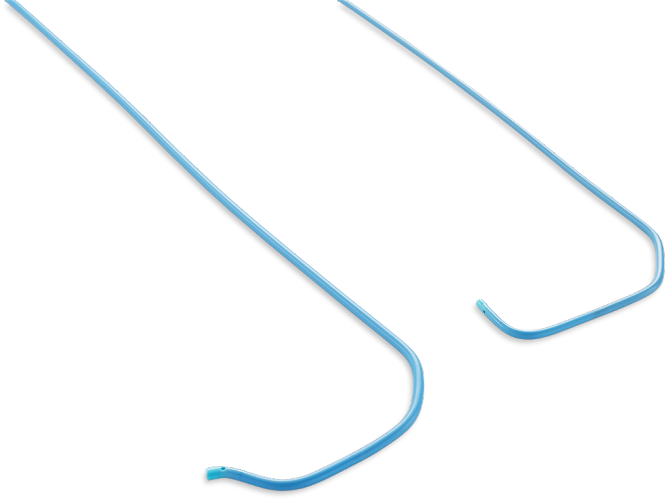

OPTITORQUE® Coronary Diagnostic Catheter

PRODUCT OVERVIEW

A complete line of coronary diagnostic catheters designed for optimum torque control and precise placement.

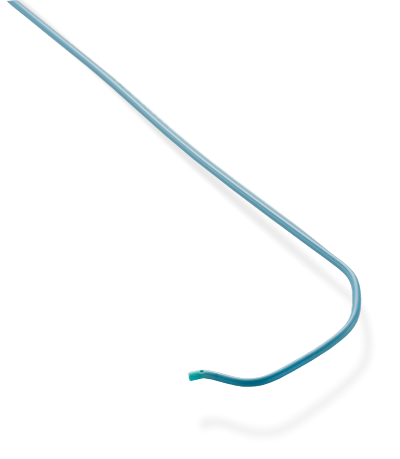

RADIAL SPECIFIC

  • Radial specific curves designed to enable support and alignment during catheterization

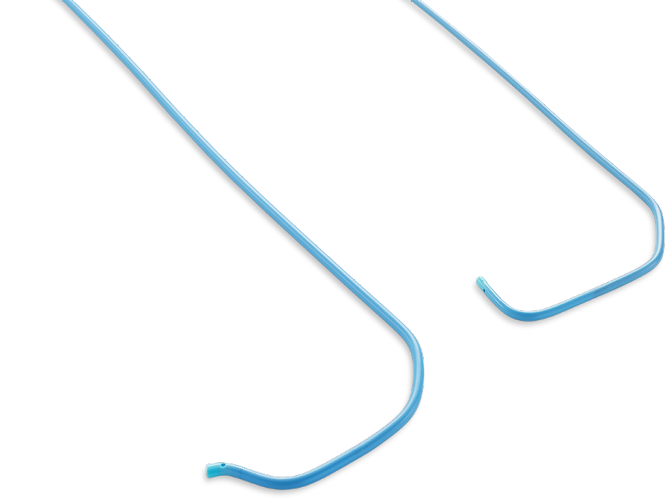

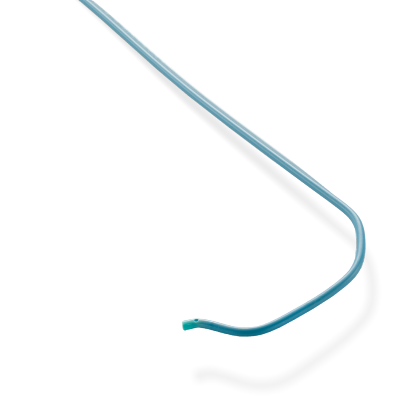

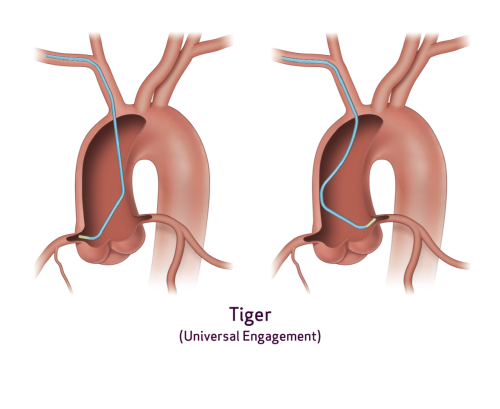

  • Tiger and Jacky curve shapes available in two sizes for various anatomy

UNIVERSAL SHAPES

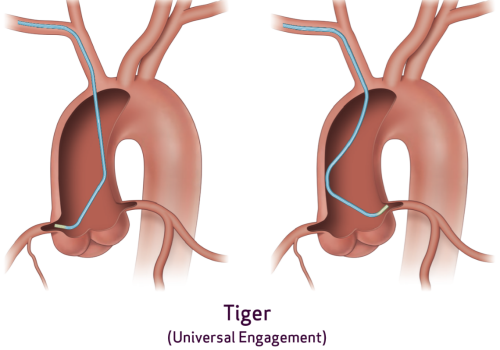

  • Enables angiography of both RCA and LCA with one catheter by eliminating a catheter exchange step and potentially shortens procedure and fluoroscopic time

UNIQUE DESIGN

  • Designed for coaxial alignment to the ostium, allowing the catheter to sit at the appropriate angle for optimal engagement

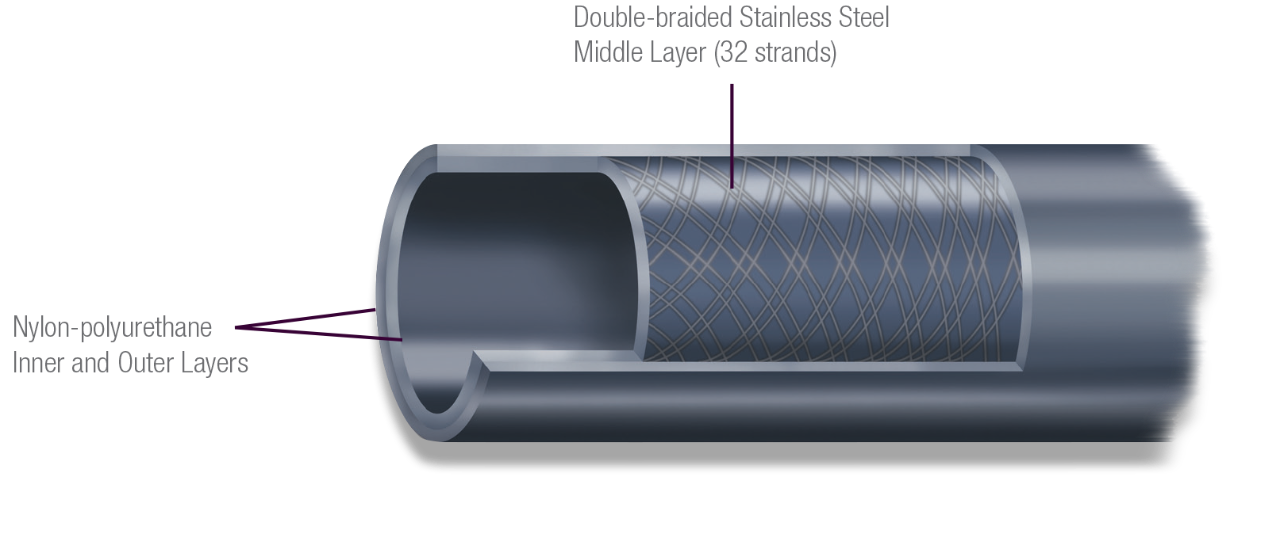

  • Large lumen allows high flow of contrast media and allows downsizing of French size

PRODUCT CODES

OPTITORQUE Radial-Specific Shapes

Shape Category

Product Code

5Fr/1.70 mm

Product Code

6Fr/2.00 mm

Shape Name Length (cm) Side Holes
Tiger 40-5011 40-6011 Radial TIG 4.0 100 1
40-5013 40-6013 Radial TIG 4.0 110 1
40-5012 40-6012 Radial TIG 4.5 100 1
40-5014 40-6014 Radial TIG 4.5 110 1
Jacky 40-5021 40-6021 Jacky Radial (Curve Size 3.5) 100 2
40-5023 40-6023 Jacky Radial (Curve Size 3.5) 110 2
40-5022 40-6022 Sarah Radial (Curve Size 4.0) 100 2
40-5024 40-6024 Sarah Radial (Curve Size 4.0) 110 2

OPTITORQUE Classic Shapes

Shape Category Product Code 5 Fr/1.70 mm Product Code 6 Fr/2.00 mm Shape Name (cm) Length Holes Side Tip Shape
Pigtail 40-5030 40-6030 Straight Pigtail 110 6
40-5031 40-6031 Angled Pigtail 155° 110 6
Judkins Left 40-5040 40-6040 JL 3.5 (Judkins Left 3.5 cm) 100
40-5041 40-6041 JL 4.0 (Judkins Left 4.0 cm) 100
40-5042 40-6042 JL 5.0 (Judkins Left 5.0 cm) 100
Judkins Right 40-5043 40-6043 JR 3.5 (Judkins Right 3.5 cm) 100
40-5044 40-6044 JR 4.0 (Judkins Right 4.0 cm) 100
40-5045   JR 5.0 (Judkins Right 5.0 cm) 100
Bypass 40-5050 40-6050 Internal Mammary 100
Amplatz 40-5060   AL 1 (Amplatz Left Small Type) 100
40-5061 40-6061 AL 2 (Amplatz Left Middle Type) 100
Shape Category Product Code 5 Fr/1.70 mm Product Code 6 Fr/2.00 mm Shape Name (cm) Length Holes Side Tip Shape
Pigtail 40-5030 40-6030 Straight Pigtail 110 6
40-5031 40-6031 Angled Pigtail 155° 110 6
Judkins Left 40-5040 40-6040 JL 3.5 (Judkins Left 3.5 cm) 100
40-5041 40-6041 JL 4.0 (Judkins Left 4.0 cm) 100
40-5042 40-6042 JL 5.0 (Judkins Left 5.0 cm) 100
Judkins Right 40-5043 40-6043 JR 3.5 (Judkins Right 3.5 cm) 100
40-5044 40-6044 JR 4.0 (Judkins Right 4.0 cm) 100
40-5045   JR 5.0 (Judkins Right 5.0 cm) 100
Bypass 40-5050 40-6050 Internal Mammary 100
Amplatz 40-5060   AL 1 (Amplatz Left Small Type) 100
40-5061 40-6061 AL 2 (Amplatz Left Middle Type) 100

DOCUMENTS

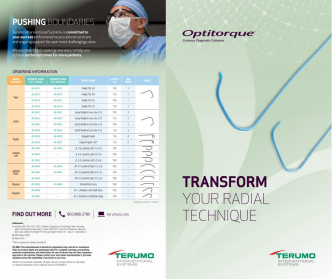

OPTITORQUE Brochure
OPTITORQUE Brochure
Coronary Catheter Selection Tool
Coronary Catheter Selection Tool

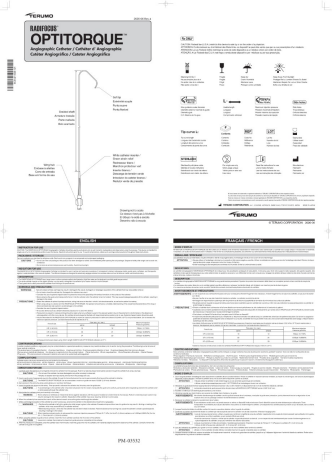

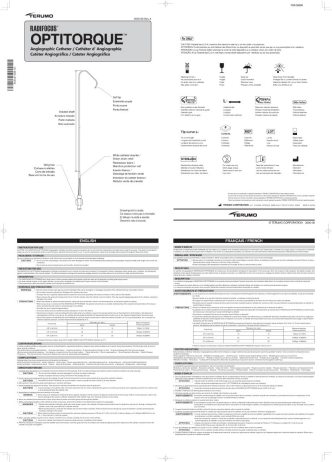

Optitorque IFU
Optitorque IFU
TC Latex Letter
TC Latex Letter
TC Materials of Concern Letter
TC Materials of Concern Letter

REFERENCES

RX ONLY. Refer to the product labels and package insert for complete warnings, precautions, potential complications, and instructions for use.
