R2P® Destination Slender® Guiding Sheath

Enhance your radial access algorithm with the performance of a thin-wall guiding sheath designed for smooth transition1

R2P Destination Slender reduces the potential for spasm and does not disrupt the typical device algorithm used by physicians

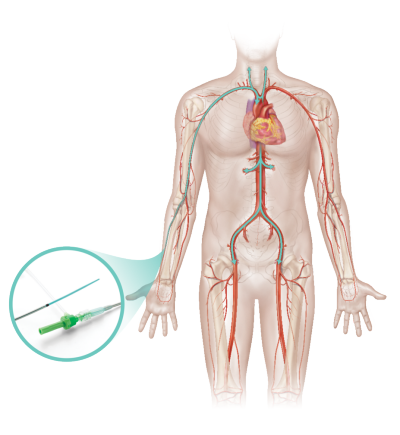

R2P Destination Slender product close-up and pathways through the human body

FULL HYDROPHILIC COATING


  • Allows for smooth transition within the radial artery

SLENDER TECHNOLOGY


  • Designed to allow for optimal management of the radial access site

LONG LENGTHS


  • Device lengths designed to support coronary, neuro, visceral, and peripheral proceduresa:  75cm, 85cm, 95cm, 105cm, 119cm and 149cm


Radial to Peripheral (R2P) Guiding Catheter

  • 6Fr thin-wall guiding sheath, available in 75cm, 85cm, 95cm, 105cm, 119cm and 149cm
  • Designed to allow safe and effective support for radial to peripheral interventional procedures
  • Features proprietary slender technology which reduces the outside diameter of the guiding sheath while maintaining a large equivalent ID, reducing the potential for spasm and allowing physicians to maintain their typical device algorithm

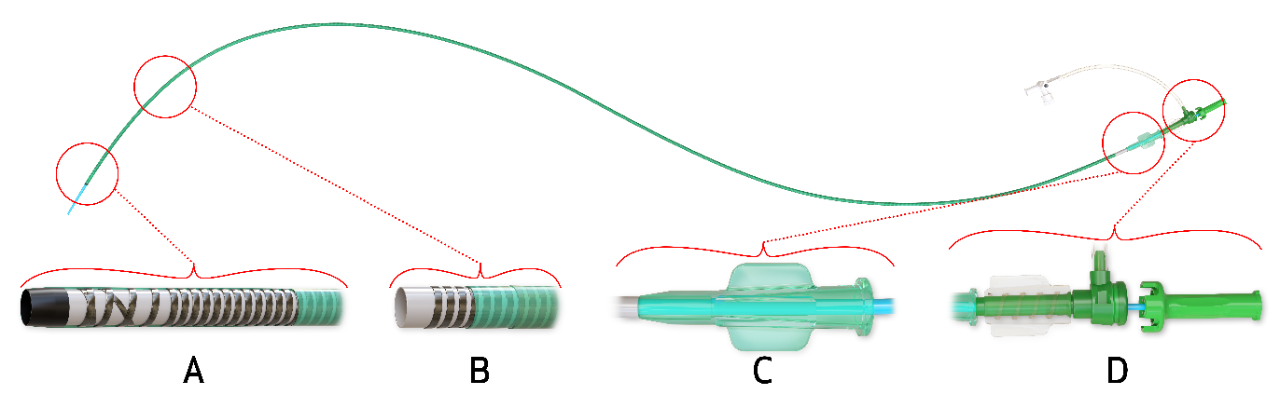

A - Tungsten tip for tip visibility / stainless steel coil
B - PTFE inner liner / nylon outer layer & hydrophilic coating
C - Sheath hub for easy handling and torque
D - Cross cut valve (CCV) assembly and snap fit dilator for a secure fit

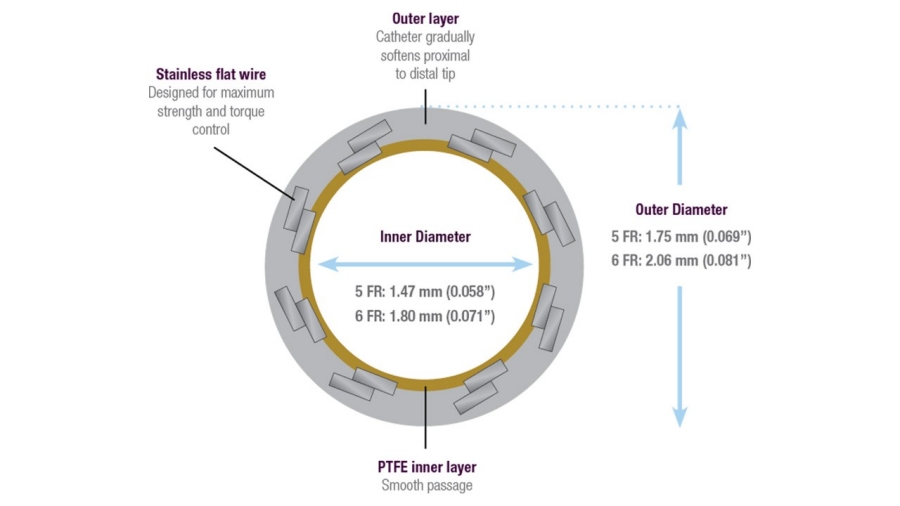

Cross-section image of R2P Slenguide with stainless flat wire, outer layer, outer diameter, inner diameter and PTFE inner layer

ASSOCIATED PRODUCTS

FREQUENTLY ASKED QUESTIONS


Why is a thin-wall guiding sheath important for R2P cases?

A thin-wall guiding sheath is crucial for R2P (radial to peripheral) cases because it enables the delivery of devices through smaller access points while maintaining a large inner lumen. This design allows physicians to use a destination sheath or guiding sheath that supports complex interventions without needing larger arterial access, which reduces the risk of complications. In radial access procedures extending to peripheral targets, a thin-wall guiding sheath optimizes patient comfort and reduces the potential for spasm. It also permits the passage of a guiding catheter with sufficient support and torque response, enhancing precision during challenging radial to peripheral interventions.



PRODUCT CODES

Product Code Working Length Total Length FR size Tip Shape Sheath ID Sheath OD Dead Space Volume Max guidewire OD
GS-R6ST1C75W 75 cm 80 cm 6 Fr Straight 2.2 mm / 0.087" 2.5 mm / 0.100" 4.0 mL 0.038" (0.97 mm) max
GS-R6ST1C85W 85 cm 90 cm 6 Fr Straight 2.2 mm / 0.087" 2.5 mm / 0.100" 4.5 mL 0.038" (0.97 mm) max
GS-R6ST1C95W 95 cm 100 cm 6 Fr Straight 2.2 mm / 0.087" 2.5 mm / 0.100" 5.0 mL 0.038" (0.97 mm) max
GS-R6ST1C10W 105 cm 110 cm 6 Fr Straight 2.2 mm / 0.087" 2.5 mm / 0.100" 5.5 mL 0.038" (0.97 mm) max
GS-R6ST1C12W 119 cm 124 cm 6 Fr Straight 2.2 mm / 0.087" 2.5 mm / 0.100" 6.0 mL 0.038" (0.97 mm) max
GS-R6ST1C15W 149 cm 154 cm 6 Fr Straight 2.2 mm / 0.087" 2.5 mm / 0.100" 7.0 mL 0.038" (0.97 mm) max

DOCUMENTS

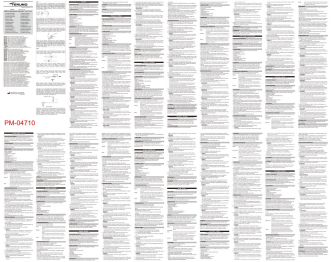

R2P DESTINATION SLENDER IFU
R2P Portfolio Brochure

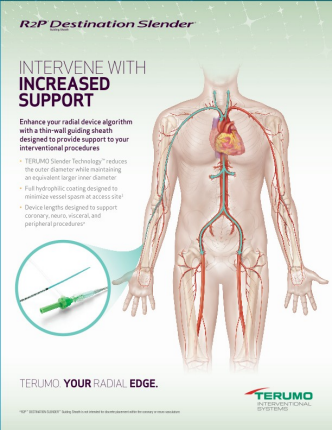

R2P Destination Slender Detailer

REFERENCES

RX ONLY. Refer to the product labels and package insert for complete warnings, precautions, potential complications, and instructions for use.

1. Data on file

aThe R2P™ DESTINATION SLENDER™ Guiding Sheath is not intended for discrete placement within the coronary or neuro vasculature
