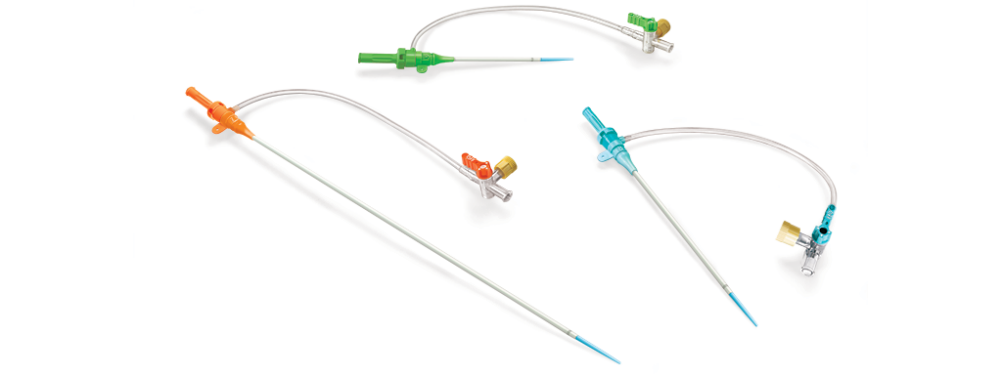

Image of Pinnacle R/O II radiopaque marker introducer sheath

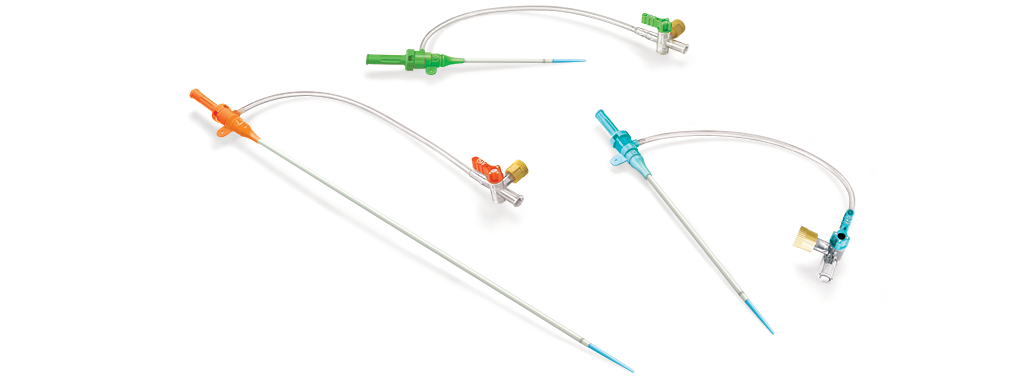

PINNACLE® R/O II Radiopaque Marker Introducer Sheath

PRODUCT OVERVIEW

Radiopaque Marker Introducer Sheaths available from 4-9FR, lengths of 6cm, 10cm and 25cm to meet all of your procedural needs.

Platinum/iridium radiopaque marker band is designed to enhance visibility

  • Smooth surface over the radiopaque marker reduces friction upon insertion and precision placement of the distal tip1
  • Small OD and large ID minimizes the size of the access site without compromising ease of device passage1
  • Kink resistant design and material1
  • Smooth transition of guidewire-to-dilator and dilator-to-sheath1
PINNACLE® R/O II Radiopaque Marker Introducer Sheaths Logo

PRODUCT CODES

Product Code Length (cm) Inner Diameter (Fr) Dilator Protruding Length (cm) Mini Guidewire Diameter (in)
RSB401 6 4 2.5
RSB501 6 5 2.5
RSB601 6 6 2.5
RSB701 6 7 2.5
RSB801 6 8 2.5
RSB901 6 9 2.5
RSB402 10 4 2.5
RSB502 10 5 2.5
RSB602 10 6 2.5
RSB702 10 7 2.5
RSB802 10 8 2.5
RSB902 10 9 2.5
RSB403 25 4 2.5
RSB503 25 5 2.5
RSB603 25 6 2.5
RSB703 25 7 2.5
RSB803 25 8 2.5
RSB903 25 9 2.5
RSB411 6 4 2.5 0.035
RSB511 6 5 2.5 0.038
RSB611 6 6 2.5 0.038
RSB711 6 7 2.5 0.038
RSB811 6 8 2.5 0.038
RSB911 6 9 2.5 0.038
RSB412 10 4 2.5 0.035
RSB512 10 5 2.5 0.038
RSB612 10 6 2.5 0.038
RSB712 10 7 2.5 0.038
RSB812 10 8 2.5 0.038
RSB912 10 9 2.5 0.038

DOCUMENTS

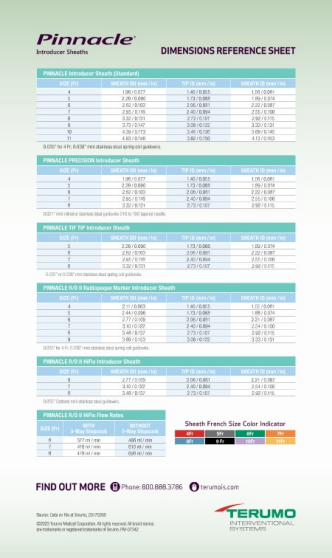

Pinnacle Dimension Sheet
Pinnacle Family Brochure

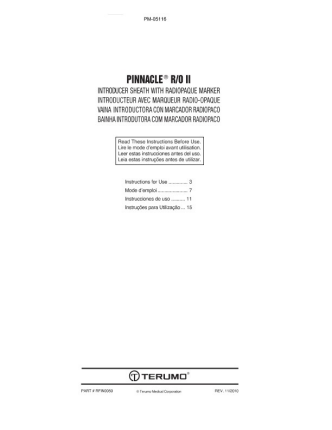

Pinnacle R/O II IFU

REFERENCES

RX ONLY. Refer to the product labels and package insert for complete warnings, precautions, potential complications, and instructions for use.

References:

  1. Data on File
