AZUR HydroPack™ Peripheral Coil System

SOFT PACKING. LONG LASTING.

For endovascular embolization, AZUR HydroPack gives you the softness you want, with the reliable and long-lasting occlusion you expect from AZUR Hydrogel coils.

Without the need to size the vessel diameter, HydroPack Coil can be used in a variety of vessel sizes in the peripheral vasculature given prior placement of an anchor or framing coil.1

SOFT COIL DESIGN

  • Tight packing and smooth delivery, even in tortuous anatomy

  • Precise coil placement with short landing zone

  • Finds and fills empty space1

  • 14.3% tighter landing zone than
    Pod Packing System1

RELIABLE AND LONG-LASTING OCCLUSION

  • Enhance efficiency and reduce
    procedure costs

  • Hydrogel expansion creates a gel core for mechanical occlusion1

  • Eliminates microchannels1

  • Hydrogel core enables AZUR HydroPack coil to have 154% more volume than leading bare platinum coils1

PACK WITHOUT COMPROMISE

  • AZUR HydroPack can be your go-to packing coil

  • Compatible microcatheters between 0.021” and 0.027” I.D.

  • Universal shape reduces amount of inventory required

  • Available in up to 60 cm

A New AZUR Treatment Algorithm2

AZUR HydroPack coil is designed to fill volume behind AZUR CX coil for vessel occlusion, and inside of the AZUR Framing Coil for aneurysm occlusion.1

Vessel

  • The diameter of the first coil should never be less than the width of the diameter of the vessel
           ◦ A first coil of appropriate diameter is required to begin

  • Utilize HydroPack for tight packing behind previously placed coil(s)

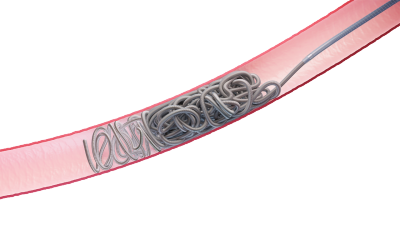

Image of Hydropack coil in a vessel

Aneurysm

  • The diameter of the first coil should never be less than the width of the aneurysm neck
            ◦ Initial coil(s) of appropriate diameter required to begin
  • Fill space with volumetrically efficient coils sizing down as less space is available
  • Utilize HydroPack to find open space within the aneurysmal sac

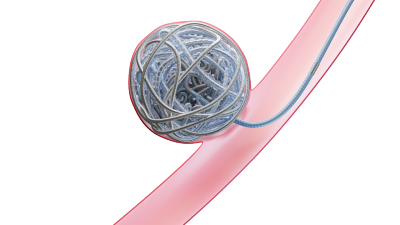

Image of Hydropack in an aneurysm

PRODUCT SPECIFICATIONS

Order Code Description Length Microcatheter Compatibility*  Softness Hydrogel
Progreat 2.4Fr Progreat 2.8Fr
45-880005 AZUR HydroPack 18 5cm 5cm √ √ √ √
45-880010 AZUR HydroPack 18 10cm 10cm √ √ √ √
45-880020 AZUR HydroPack 18 20cm 20cm √ √ √ √
45-880035 AZUR HydroPack 18 35cm 35cm √ √ √ √
45-880050 AZUR HydroPack 18 50cm 50cm √ √ √ √
45-880060 AZUR HydroPack 18 60cm 60cm √ √ √ √
*AZUR HydroPack is compatible with microcatheters ranging from 0.021" - 0.027" I.D.

DOCUMENTS

AZUR HydroPack Brochure
Embolization Pocket Guide
Embolization Reimbursement Guide

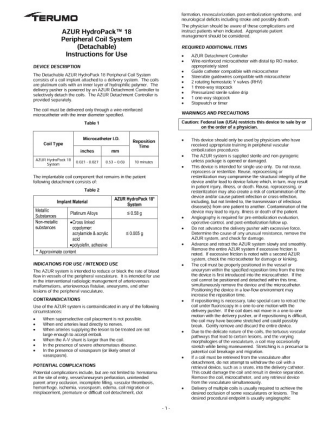

AZUR HydroPack IFU

REFERENCES

RX ONLY. Refer to the product labels and package insert for complete warnings, precautions, potential complications, and instructions for use.

  1. Data on file.
  2. AZUR HydroPack IFU100206 Rev A Revised 2023-02
