FINECROSS® M3 Coronary Micro-Guide Catheter

Designed to provide the ultimate balance of properties for optimal guidewire support and superior crossability for access and crossing of simple to complex lesions.1

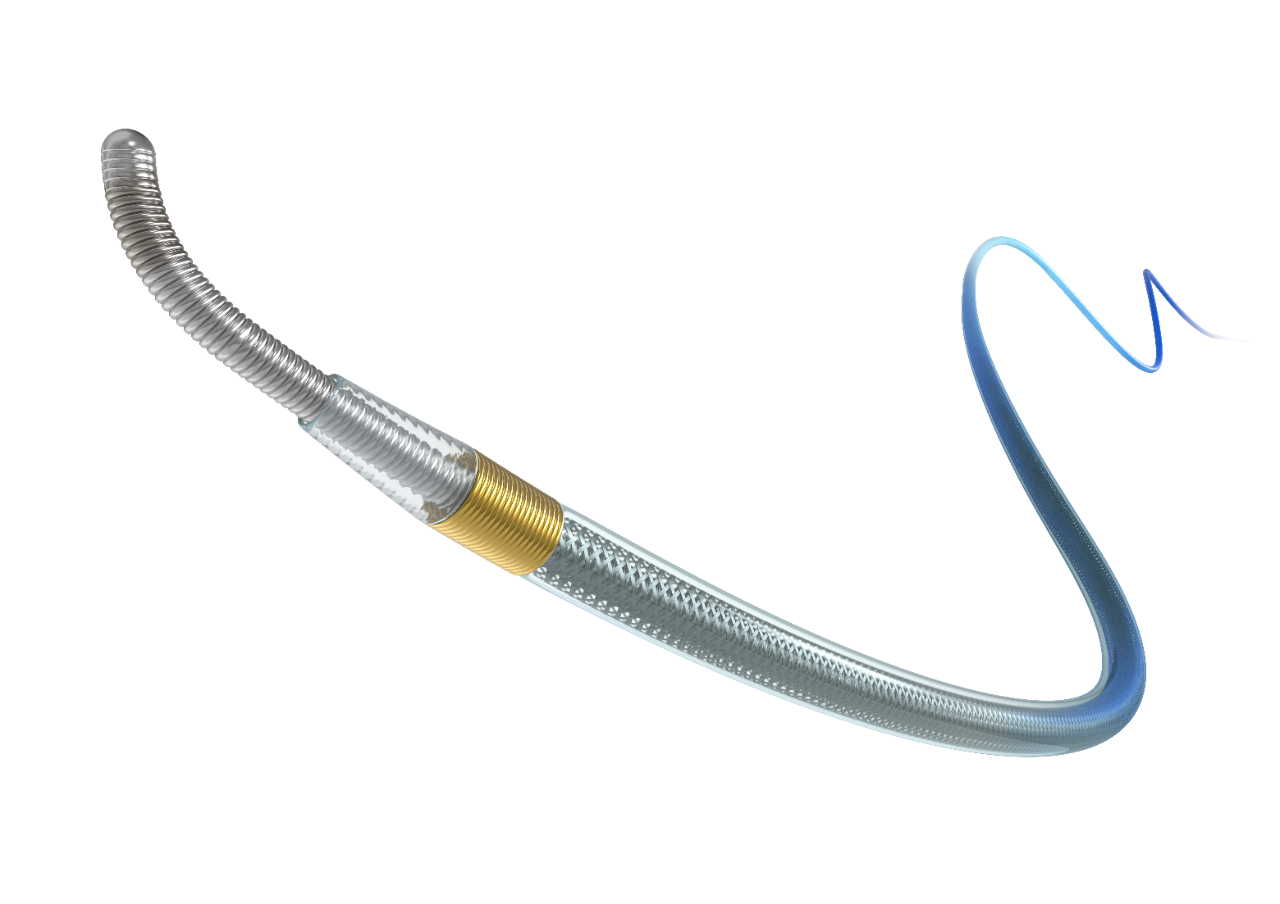

Product photo: FINECROSS M3 Coronary Micro-Guide Catheter
Product photo: FINECROSS M3 Coronary Micro-Guide Catheter

TAPERED STAINLESS STEEL BRAID CONSTRUCTION FOR OPTIMAL GUIDEWIRE SUPPORT

  • FINECROSS M3 stainless steel braid construction is designed to provide strength, responsiveness and support for improved pushability to access and cross complex lesions.

15cm FLOPPY DISTAL SEGMENT FOR SUPERIOR TRACKABILITY1

  • The distal 15cm is ultra-flexible for improved trackability around tight bends and tortuous anatomy. The floppy distal segment is designed to be atraumatic and provide an optimal balance between trackability and safety while navigating through the tortuous anatomy.1

TAPERED OUTER DIAMETER FOR SUPERIOR CROSSABILITY1

  • The outer diameter of the stainless-steel shaft tapers from a proximal 2.5Fr. to a distal 1.7Fr. designed for improved crossability and guidewire handling.1

CROSS CATHETER DESIGN FOR CHALLENGING CORONARY INTERVENTIONS

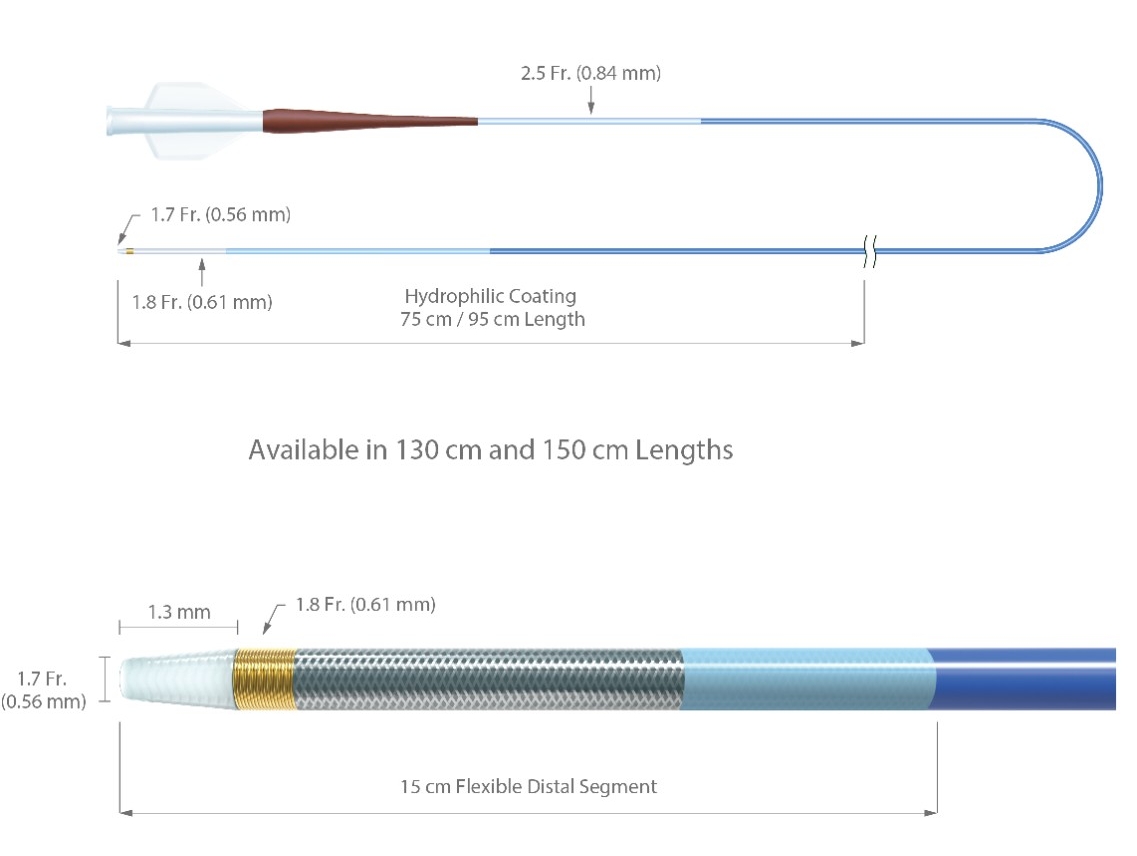

Diagram of FINECROSS M3 Coronary Micro-Guide Catheter with labeled sections: tapered tip, hydrophilic coating, core wire, and available lengths.
Diagram of FINECROSS M3 Coronary Micro-Guide Catheter with labeled sections: tapered tip, hydrophilic coating, core wire, and available lengths.

PRODUCT CODES

FINECROSS M3 Product SKUs

Product Code Catheter Length Distal Hydrophilic Coating Distal Tip Outer Diameter Proximal Outer Diameter Distal Inner Diameter
Proximal Inner Diameter 		Recommended Guidewire Size
M3-1430 130cm 75cm 1.7Fr. (0.56mm) 2.5 Fr. (0.84mm) 0.018" (0.45mm) 0.021" (0.55mm) 0.014" (0.36mm)
M3-1450 150cm 95cm 1.7Fr. (0.56mm) 2.5 Fr. (0.84mm) 0.018" (0.45mm) 0.021" (0.55mm) 0.014" (0.36mm)

DOCUMENTS

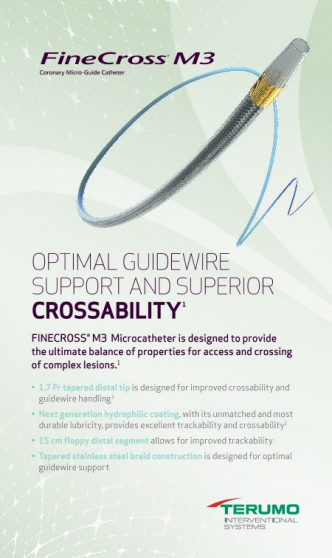

FineCross M3 Sell Sheet
Runthrough and Finecross Brochure

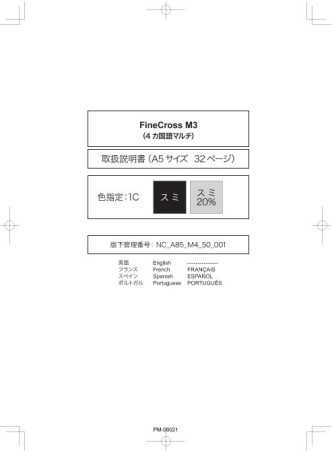

FineCross M3 IFU
Complex Coronary Solutions Brochure

ASSOCIATED PRODUCTS

FREQUENTLY ASKED QUESTIONS

How best to use a coronary microcatheter?

A coronary microcatheter is used to enhance guidewire support, enable wire exchange, and improve crossing in challenging coronary anatomy. After advancing the guide catheter, insert a 0.014" guidewire and position it near the lesion. The microcatheter is then advanced over the wire under fluoroscopy, ensuring the wire always leads the device to avoid vessel injury. Maintain gentle, controlled manipulation, avoiding excessive rotation if resistance occurs.

The Terumo Finecross M3 microcatheter provides tapered stainless‑steel braid construction for support and pushability, with a 15cm floppy distal segment for trackability in tortuous segments. Its tapered outer diameter (2.5Fr proximal to 1.7Fr distal) enhances crossability and facilitates guidewire handling during complex PCI.1

Once positioned, the microcatheter allows wire exchange by stabilizing the system while the original wire is withdrawn and replaced. It can also facilitate contrast injection for vessel visualization when required. After completing wire manipulation or lesion crossing, withdraw the microcatheter carefully, maintaining wire position.

REFERENCES

RX ONLY. Refer to the product labels and package insert for complete warnings, potential complications, and instructions for use.

  1. Data on File.
