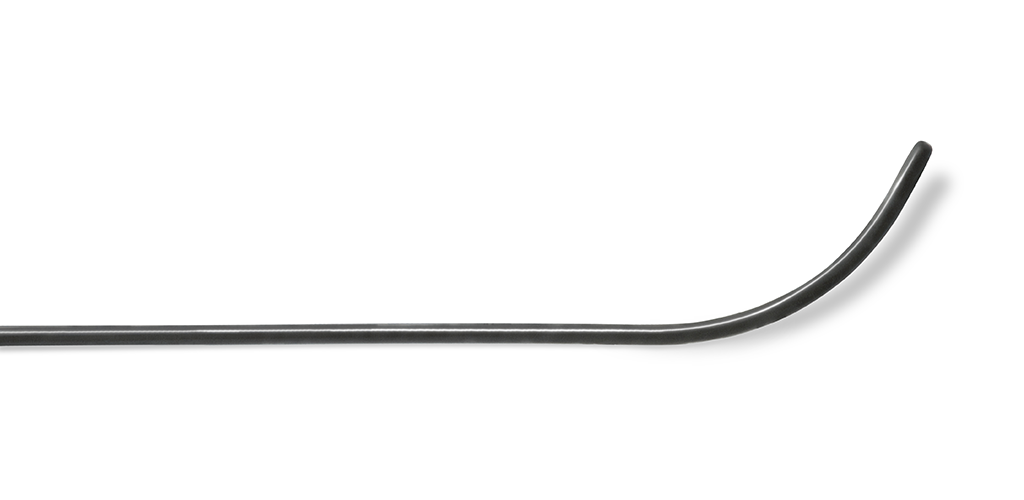

GLIDEWIRE® Hydrophilic Coated Guidewire
Product Overview
Consistent, reliable Terumo GLIDEWIRE performance designed to get you there
The Terumo GLIDEWIRE product line that you know and trust offers a robust range of tip shapes and wire configurations making it possible for you to find the right tools for your challenging procedures.
Terumo Glide Technology™ hydrophilic coating proven to have superior lubricity1 with a proprietary design for smooth, rapid movement through tortuous vessels and crossability over difficult lesions
- Core-to-tip design provides 1:1 torque ratio
- Super-elastic nitinol core for optimal performance
- Unsurpassed lubricity and nitinol alloy core for kink resistance
- Retains shape for consistent reliability through procedure
1 Niazi K, Farooqui F, Devireddy C. Comparison of Hydrophilic Guidewires Used in Endovascular Procedures. Journal of Invasive Cardiology. 2009;21:397-400
GLIDEWIRE Standard
| PRODUCT CODE | WIRE TYPE | DIAMETER | TOTAL LENGTH | FLEXIBLE TIP LENGTH | TIP SHAPE |
| GE1801 | Shapeable | 0.018" | 150 cm Long | 3 cm | Straight/Shapeable |
| GR1802 | Standard | 0.018" | 150 cm Long | 3 cm | Straight |
| GR1803 | Standard | 0.018" | 180 cm Long | 3 cm | Straight |
| GR1804 | Standard | 0.018" | 80 cm Long | 3 cm | Angle |
| GR1805 | Standard | 0.018" | 150 cm Long | 3 cm | Angle |
| GR1806 | Standard | 0.018" | 180 cm Long | 3 cm | Angle |
| GR1807 | Standard | 0.018" | 260 cm Long | 3 cm | Straight |
| GR1808 | Standard | 0.018" | 260 cm Long | 3 cm | Straight |
| GR2504 | Standard | 0.025" | 150 cm Long | 3 cm | Angle |
| GR2505 | Standard | 0.025" | 180 cm Long | 3 cm | Angle |
| GR2506 | Standard | 0.025" | 260 cm Long | 3 cm | Angle |
| GR2501 | Standard | 0.025" | 150 cm Long | 3 cm | Straight |
| GR2502 | Standard | 0.025" | 180 cm Long | 3 cm | Straight |
| GR2503 | Standard | 0.025" | 260 cm Long | 3 cm | Straight |
| GR3202 | Standard | 0.032" | 150 cm Long | 3 cm | Angle |
| GR3201 | Standard | 0.032" | 150 cm Long | 3 cm | Straight |
| GR3506 | Standard | 0.035" | 150 cm Long | 3 cm | Angle |
| GR3501 | Standard | 0.035" | 150 cm Long | 3 cm | Straight |
| GR3805 | Standard | 0.038" | 120 cm Long | 3 cm | Angle |
| GR3806 | Standard | 0.038" | 150 cm Long | 3 cm | Angle |
| GR3801 | Standard | 0.038" | 150 cm Long | 3 cm | Straight |
| GR3510 | Standard | 0.035" | 150 cm Long | 3 cm | J-Tip |
| GR3810 | Standard | 0.038" | 150 cm Long | 3 cm | J-Tip |
| GR3513 | Standard Shaft | 0.035" | 80 cm Long | 3 cm Taper | Angle |
| GR3811 | Standard Shaft | 0.038" | 80 cm Long | 3 cm Taper | Angle |
| GR3515 | Standard Shaft | 0.035" | 150 cm Long | 1 cm Taper | Angle |
| GR3518 | Standard Shaft | 0.035" | 150 cm Long | 1 cm Taper | Straight |
| GR3507 | Long Taper | 0.035" | 150 cm Long | 8 cm | Angle |
| GR3502 | Long Taper | 0.035" | 150 cm Long | 8 cm | Straight |
| GR3807 | Long Taper | 0.038" | 150 cm Long | 8 cm | Angle |
| GR3802 | Long Taper | 0.038" | 150 cm Long | 8 cm | Straight |
| GR3508 | Standard | 0.035" | 180 cm Long | 3 cm | Angle |
| GR3503 | Standard | 0.035" | 180 cm Long | 3 cm | Straight |
| GR3808 | Standard | 0.038" | 180 cm Long | 3 cm | Angle |
| GR3803 | Standard | 0.038" | 180 cm Long | 3 cm | Straight |
| GR3516 | Standard | 0.035" | 180 cm Long | 1 cm Taper | Angle |
| GR3519 | Standard | 0.035" | 180 cm Long | 1 cm Taper | Straight |
| GR3525 | Standard | 0.035" | 180 cm Long | 1.5 mm J-Tip | |
| GR3509 | Standard | 0.035" | 260 cm Long | 3 cm | Angle |
| GR3504 | Standard | 0.035" | 260 cm Long | 3 cm | Straight |
| GR3809 | Standard | 0.038" | 260 cm Long | 3 cm | Angle |
| GR3804 | Standard | 0.038" | 260 cm Long | 3 cm | Straight |
| GR3517 | Standard Shaft | 0.035" | 260 cm Long | 1 cm Taper | Angle |
| GR3520 | Standard Shaft | 0.035" | 260 cm Long | 1 cm Taper | Straight |
| GR3526 | Standard | 0.035" | 260 cm Long | 1.5 mm J-Tip |
GLIDEWIRE with 3 cm Shapeable Tip (Straight)
| PRODUCT CODE | DIAMETER | TOTAL LENGTH | FLEXIBLE TIP LENGTH |
| GE1801 | 0.018" | 150 cm | 3 cm Flexible Tip Length |
| GE3501 | 0.035" | 150 cm | 3 cm Flexible Tip Length |
| GE3801 | 0.038" | 150 cm | 3 cm Flexible Tip Length |
| GE3502 | 0.035" | 180 cm | 3 cm Flexible Tip Length |
GLIDEWIRE Stiff Shaft
| PRODUCT CODE | WIRE TYPE | DIAMETER | TOTAL LENGTH | FLEXIBLE TIP LENGTH | TIP SHAPE |
| GS3505 | Stiff | 0.035” | 80cm | 3cm | Angle |
| GS3506 | Stiff | 0.035” | 150cm | 3cm | Angle |
| GS3508 | Stiff | 0.035” | 180cm | 3cm | Angle |
| GS3509 | Stiff | 0.035” | 260cm | 3cm | Angle |
| GS3501 | Stiff | 0.035” | 150cm | 3cm | Straight |
| GS3503 | Stiff | 0.035” | 180cm | 3cm | Straight |
| GS3504 | Stiff | 0.035” | 260cm | 3cm | Straight |
| GS3804 | Stiff | 0.038” | 80cm | 3cm | Angle |
| GS3805 | Stiff | 0.038” | 150cm | 3cm | Angle |
| GS3807 | Stiff | 0.038” | 180cm | 3cm | Angle |
| GS3801 | Stiff | 0.038” | 150cm | 3cm | Straight |
| GS3803 | Stiff | 0.038” | 180cm | 3cm | Straight |
*Packed 5 per Box
Long Taper GLIDEWIRE
| PRODUCT CODE | WIRE TYPE | DIAMETER | TOTAL LENGTH | FLEXIBLE TIP LENGTH | TIP SHAPE |
| GS3507 | Stiff | 0.035” | 150cm | 5cm | Angle |
| GS3510 | Stiff | 0.035” | 260cm | 5cm | Angle |
| GS3502 | Stiff | 0.035” | 150cm | 5cm | Straight |
| GS3806 | Stiff | 0.038” | 150cm | 5cm | Angle |
| GS3802 | Stiff | 0.038” | 150cm | 5cm | Straight |
| GR3507 | Standard | 0.035” | 150cm | 8cm | Angle |
| GR3502 | Standard | 0.035” | 150cm | 8cm | Straight |
| GR3807 | Standard | 0.038” | 150cm | 8cm | Angle |
| GR3802 | Standard | 0.038” | 150cm | 8cm | Straight |
*Packed 5 per Box
1cm Taper GLIDEWIRE
| PRODUCT CODE | WIRE TYPE | DIAMETER | TOTAL LENGTH | FLEXIBLE TIP LENGTH | TIP SHAPE |
| GR3515 | Standard | 0.035” | 150cm | 1cm | Angle |
| GR3516 | Standard | 0.035” | 180cm | 1cm | Angle |
| GR3517 | Standard | 0.035” | 260cm | 1cm | Angle |
| GR3518 | Standard | 0.035” | 150cm | 1cm | Straight |
| GR3519 | Standard | 0.035” | 180cm | 1cm | Straight |
| GR3520 | Standard | 0.035” | 260cm | 1cm | Straight |
| GR3511 | Stiff | 0.035” | 150cm | 1cm | Angle |
*Packed 5 per Box
Shapeable Tip GLIDEWIRE
| PRODUCT CODE | WIRE TYPE | DIAMETER | TOTAL LENGTH | FLEXIBLE TIP LENGTH | TIP SHAPE |
| GE3501 | Standard | 0.035” | 150cm | 3cm | Straight/Shapeable |
| GE3502 | Standard | 0.035” | 180cm | 3cm | Straight/Shapeable |
| GE3801 | Standard | 0.038” | 150cm | 3cm | Straight/Shapeable |
*Packed 5 per Box
J-Tip GLIDEWIRE
| PRODUCT CODE | WIRE TYPE | DIAMETER | TOTAL LENGTH | FLEXIBLE TIP LENGTH | TIP SHAPE | |
| GR3510 | Standard | 0.035” | 150cm | 3cm | 3.0mm | J-tip |
| GR3810 | Standard | 0.038” | 150cm | 3cm | 3.0mm | J-tip |
| GR3525 | Standard | 0.035” | 180cm | 3cm | 1.5mm | J-tip |
| GR3526 | Standard | 0.035” | 260cm | 3cm | 1.5mm | J-tip |
*Packed 5 per Box
Bolia Curve GLIDEWIRE
| PRODUCT CODE | WIRE TYPE | DIAMETER | TOTAL LENGTH | FLEXIBLE TIP LENGTH | TIP SHAPE |
| GR3521 | Standard | 0.035” | 180cm | 5cm | Bolia |
| GR3522 | Standard | 0.035” | 180cm | 8cm | Bolia |
*Packed 5 per Box
