GLIDESHEATH SLENDER® Tibial Pedal Kit

GLIDESHEATH SLENDER® Tibial Pedal Kit

PRODUCT OVERVIEW

ADVANCE YOUR APPROACH TO TIBIAL PEDAL ACCESS

Expand your options for procedural success with the proprietary technology of GLIDESHEATH SLENDER, designed for tibial pedal access.

GLIDESHEATH SLENDER® Tibial Pedal Kit

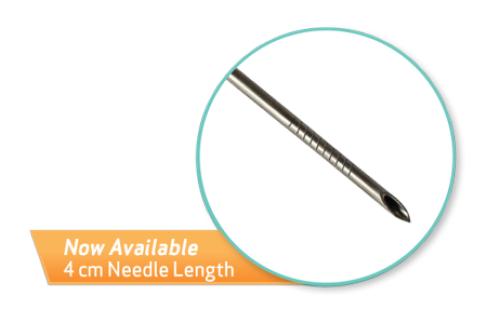

Available in 4cm needle length

Leverage intricate engineering

GLIDESHEATH SLENDER® offers a thin-wall sheath option for procedures requiring a 5 Fr sheath.1

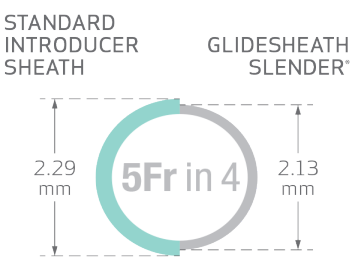

Comparison of standard introducer sheath (2.29 mm outer diameter) and Glidesheath Slender (2.13 outer diameter)

Proprietary thin-wall technology

Proprietary thin-wall technology reduces the outside diameter of the introducer sheath by one Fr size while maintaining larger inner-diameter equivalent.

TERUMO Glide Technology™ hydrophilic coating enables easy insertion and removal.1

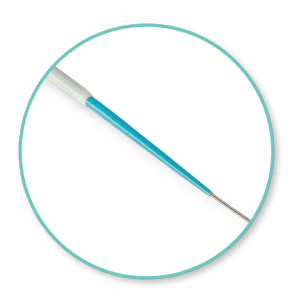

Close-up of Terumo Glide Technology hydrophilic coating

ACCESS WITH DETAILED AND SOPHISTICATED DESIGN

Custom Guidewire

  • An 0.021” wire provides greater rail strength to prevent buckling1
  • Engineered with nitinol construction

Size: 0.021” | Length: 43 cm

Custom Needle

  • Tapered needle transitions from 21G tip to 19G shaft for better blood return
  • Back bevel cuts help to facilitate a straighter entry1
  • Echogenic tip for enhanced visibility


Length: 4 cm and 7 cm

Close-up of custom guidewire

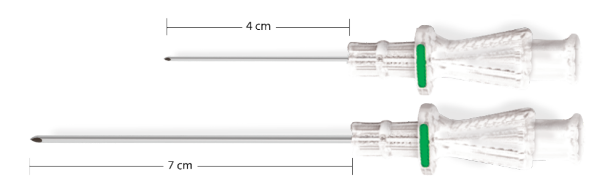

Comparison of 4 cm needle and 7 cm needle

Note: Needle diagram not to scale.

PRODUCT CODES

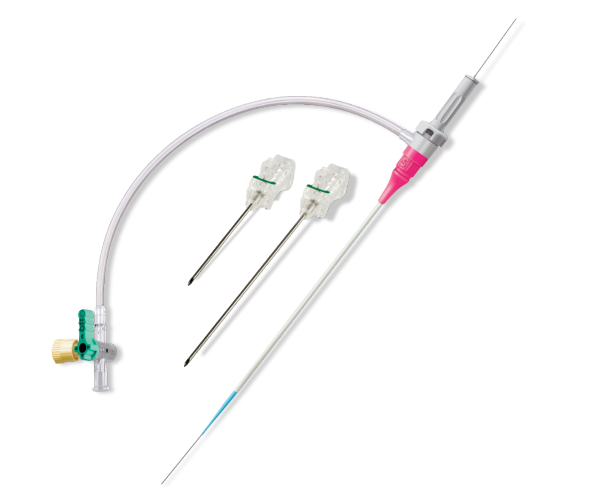

GLIDESHEATH SLENDER® Tibial Pedal Kit* includes:

CODE SHEATH DILATOR MINI-GUIDEWIRE NEEDLE NEEDLE LENGTH
52-1050 5 Fr 10 cm 0.021" Nitinol/Floppy
0.021" x 43 cm
21G-19G (Tapered)
Echogenic
4 cm (40 mm)
51-1050 5 Fr 10 cm 0.021" Nitinol/Floppy
0.021" x 43 cm
21G-19G (Tapered)
Echogenic
7 cm (70 mm)
*5 per Shelf Box | Sheath Length: 10 cm | Wire Length: 43 cm | 4 cm or 7 cm Needle

DOCUMENTS

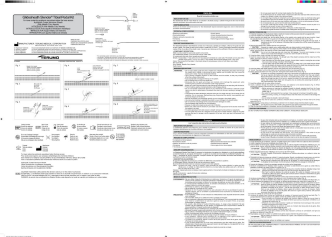

GLIDESHEATH SLENDER Tibial Pedal Kit IFU

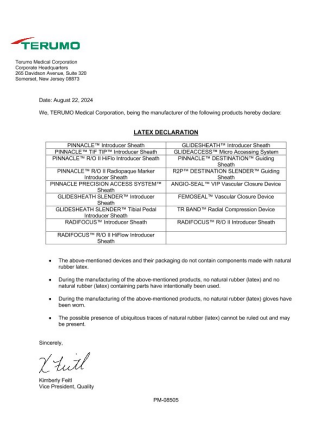

TMC Latex Letter

REFERENCES

RX ONLY. Refer to the product labels and package insert for complete warnings, precautions, potential complications, and instructions for use.

  1. Data on file.
